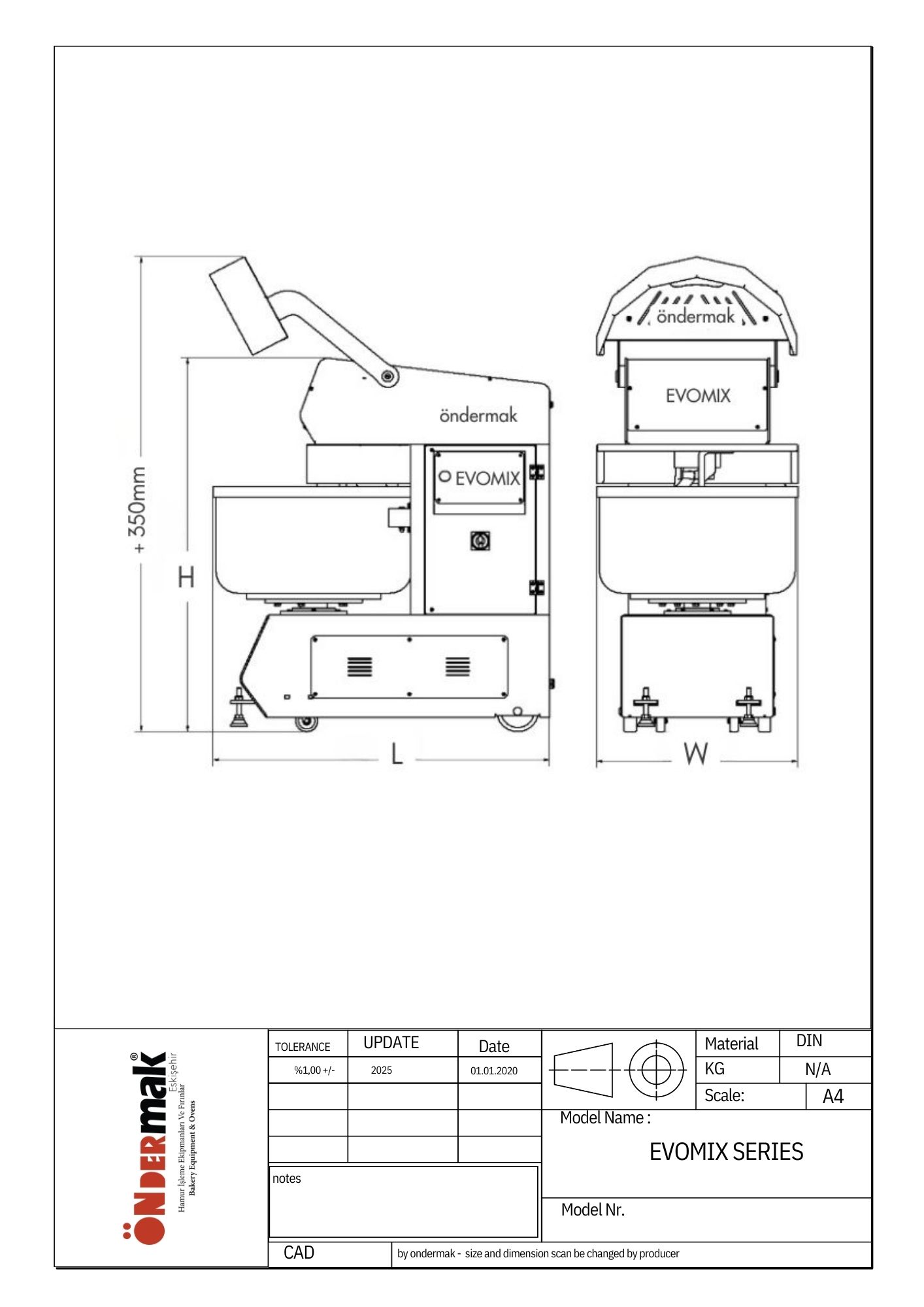

TECHNICAL DRAWING

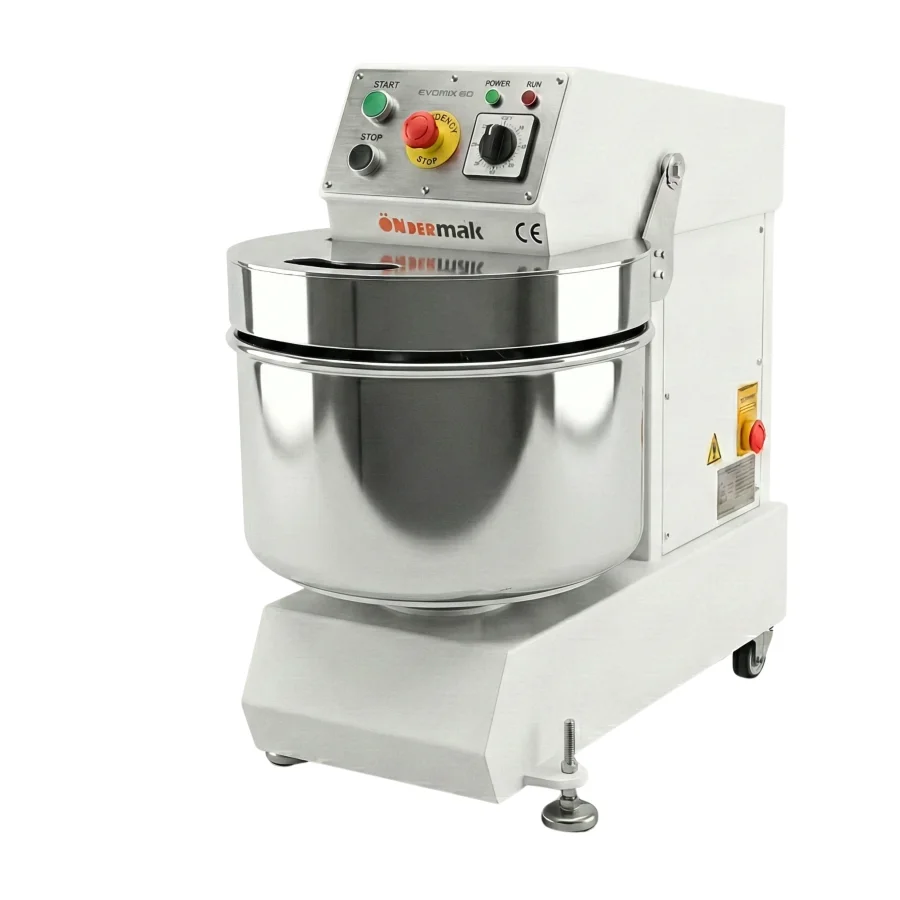

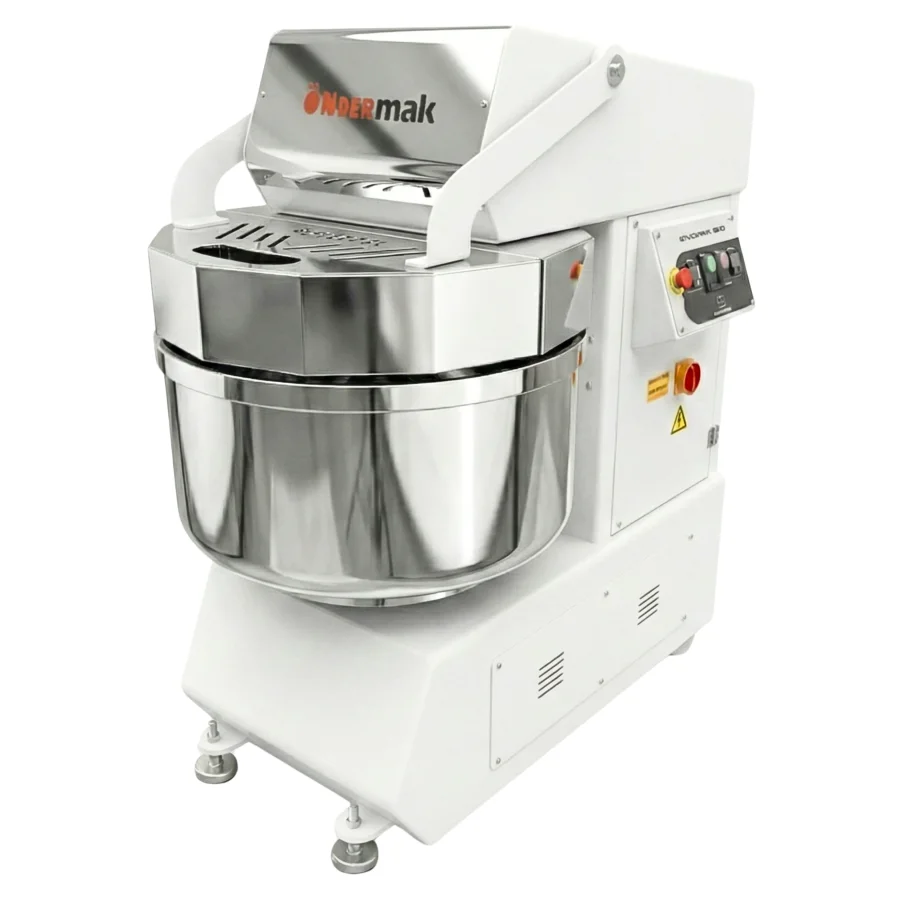

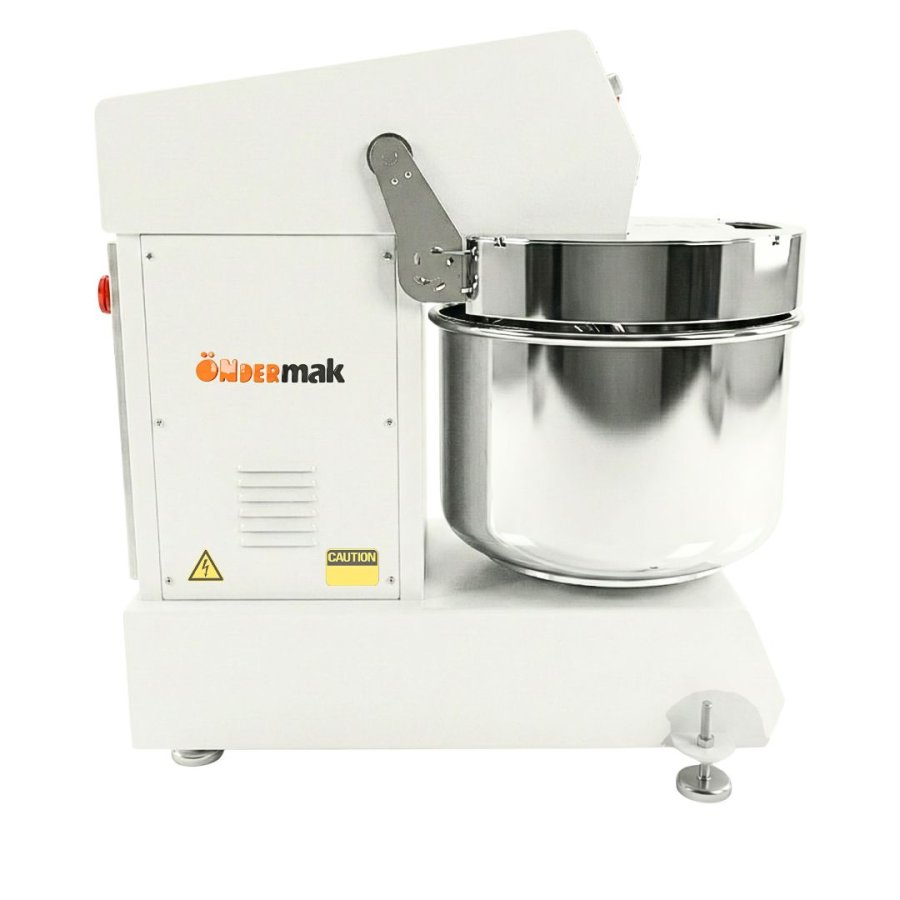

  • Fixed bowl spiral mixer
  • Stainless steel mixing bowl, spiral arm, and breaker bar (AISI 304)

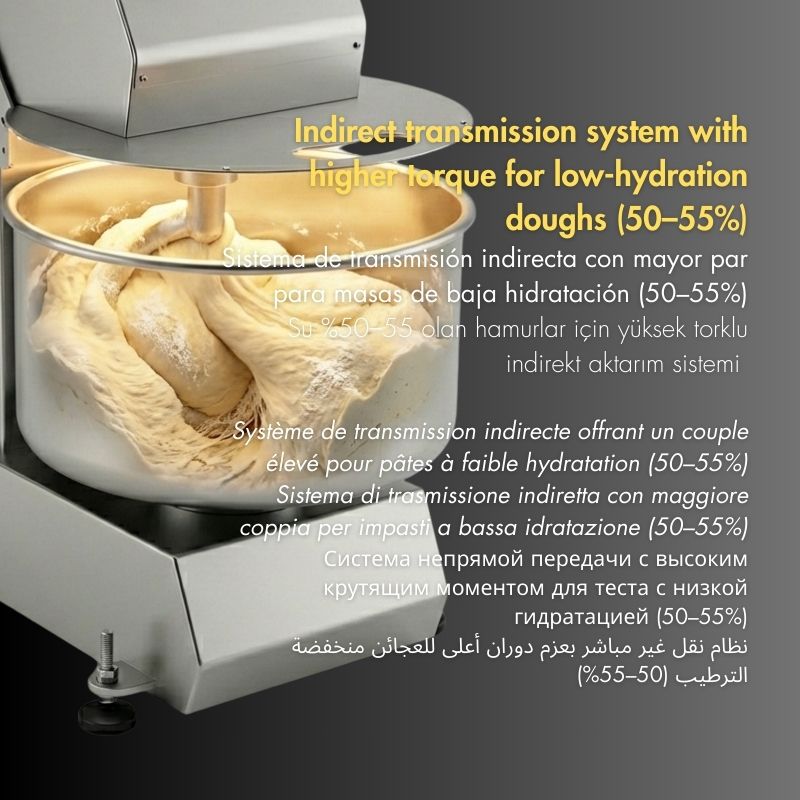

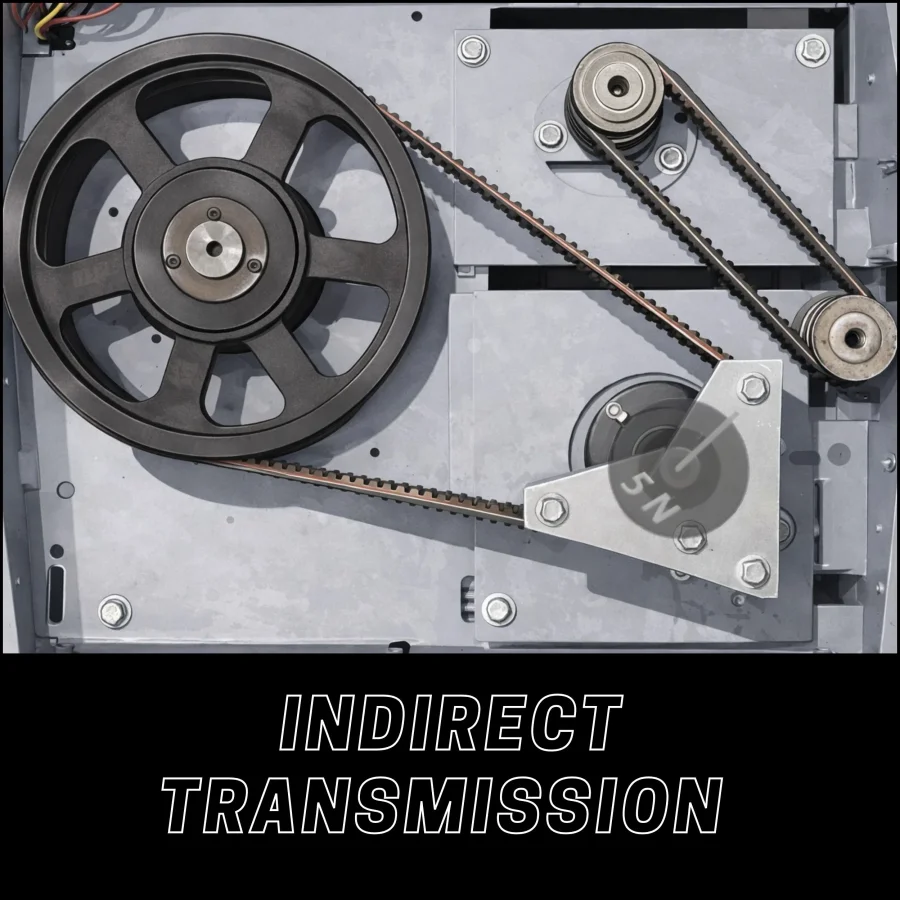

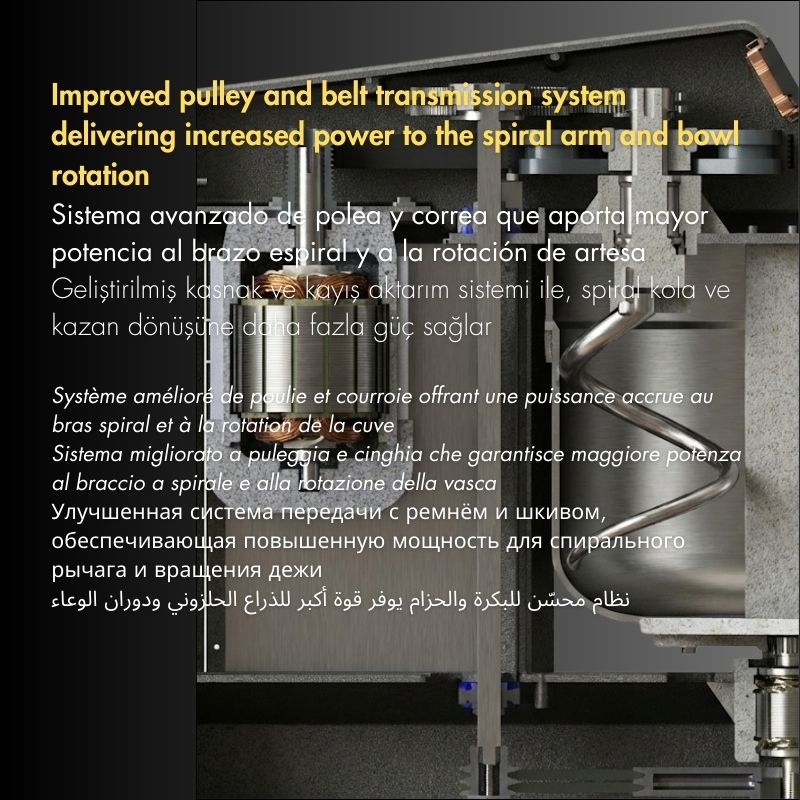

  • Indirect transmission with pulley and belt system, optimized for dough hydration levels of minimum 50- 55 %
  • Two independent motors for spiral arm and bowl rotation
  • Evomix 25 / Evomix 35 models equipped with a single motor
  • Two mixing speeds as standard
  • Dual timers for automatic operation
  • Reverse bowl rotation for improved dough consistency

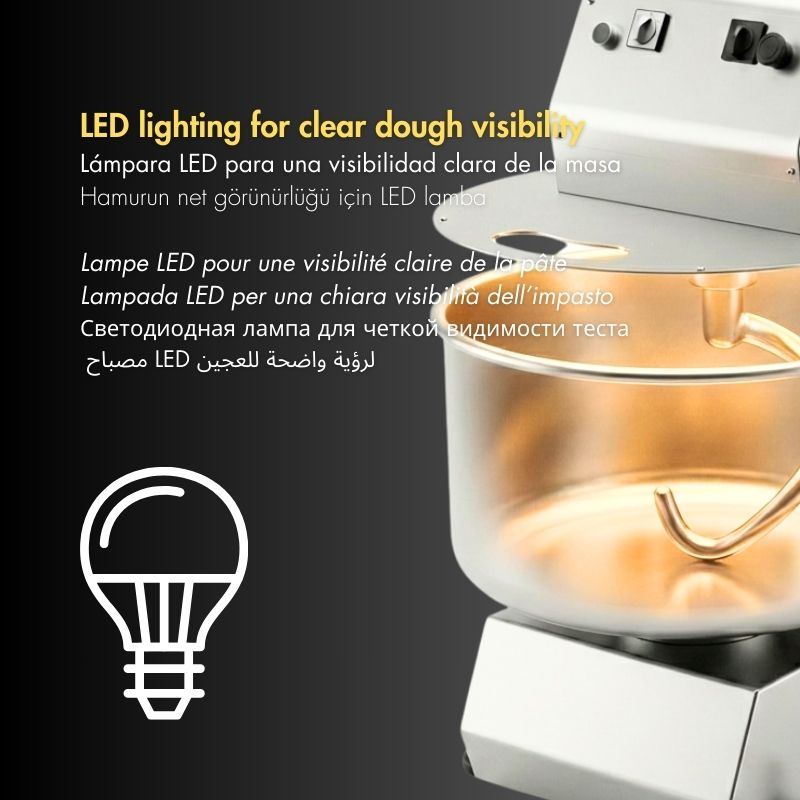

  • LED bowl illumination as standard
  • JOG function for easy bowl cleaning
  • High-strength painted steel body completely

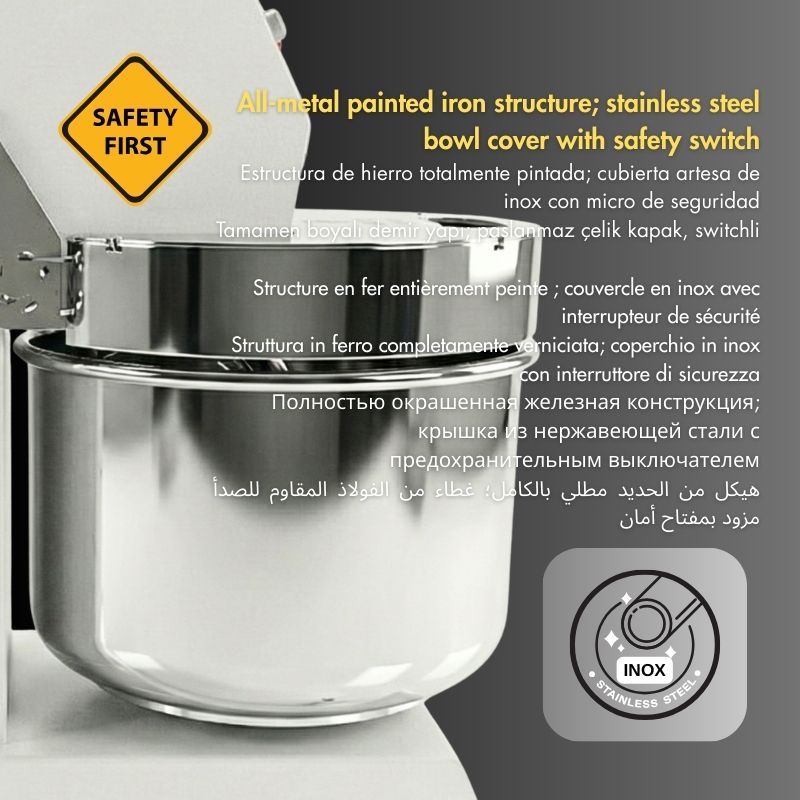

  • Stainless steel bowl grate with safety microswitch
  • RAL color options available upon request

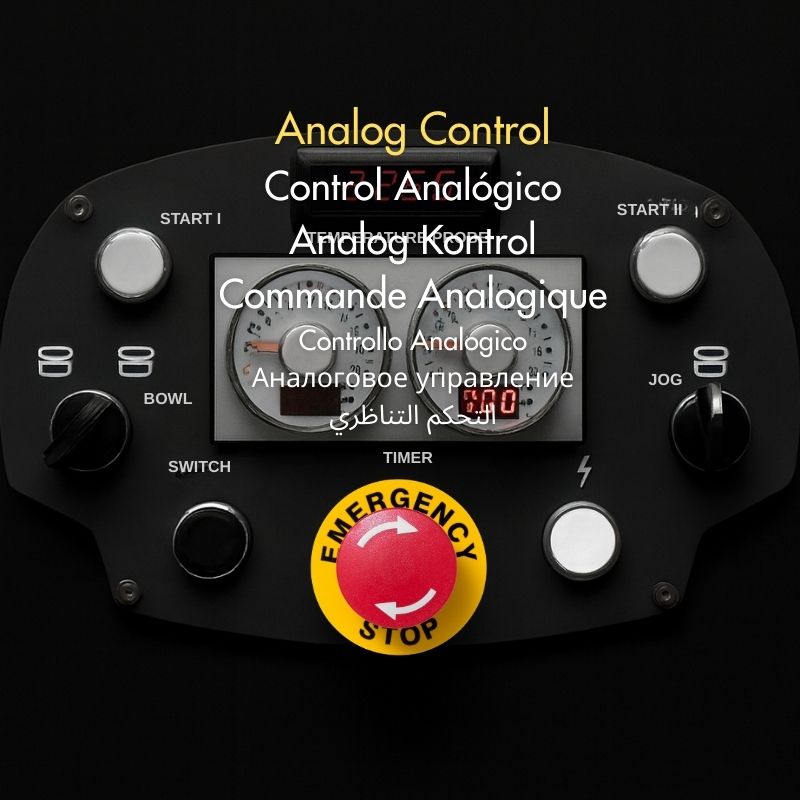

  • Electromechanical control panel
  • Easy access for cleaning and maintenance
  • 2-year warranty
  • CE-compliant safety standards



Optional Configurations

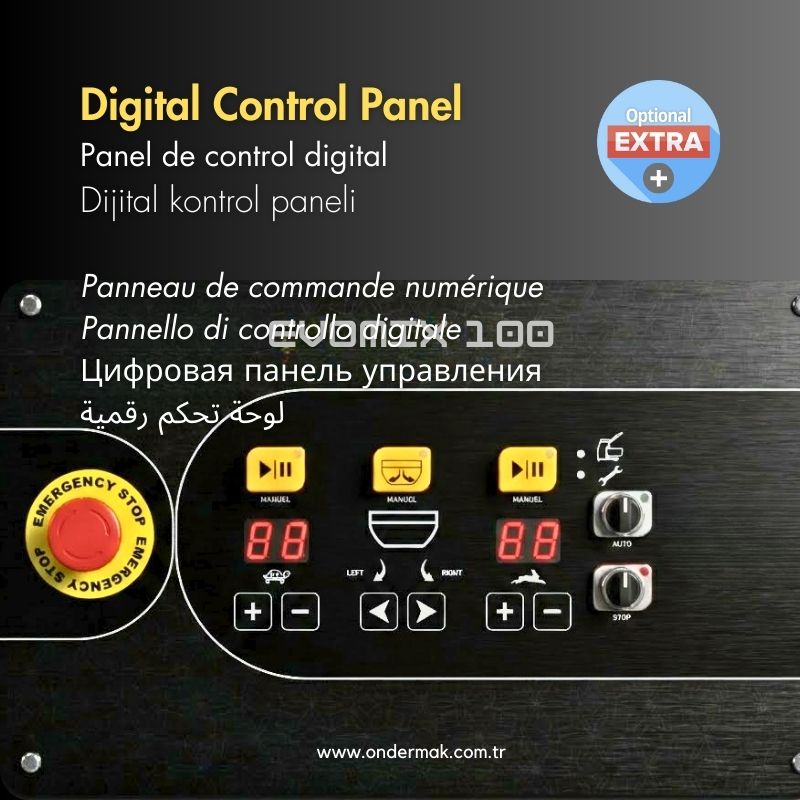

  • Digital control panel

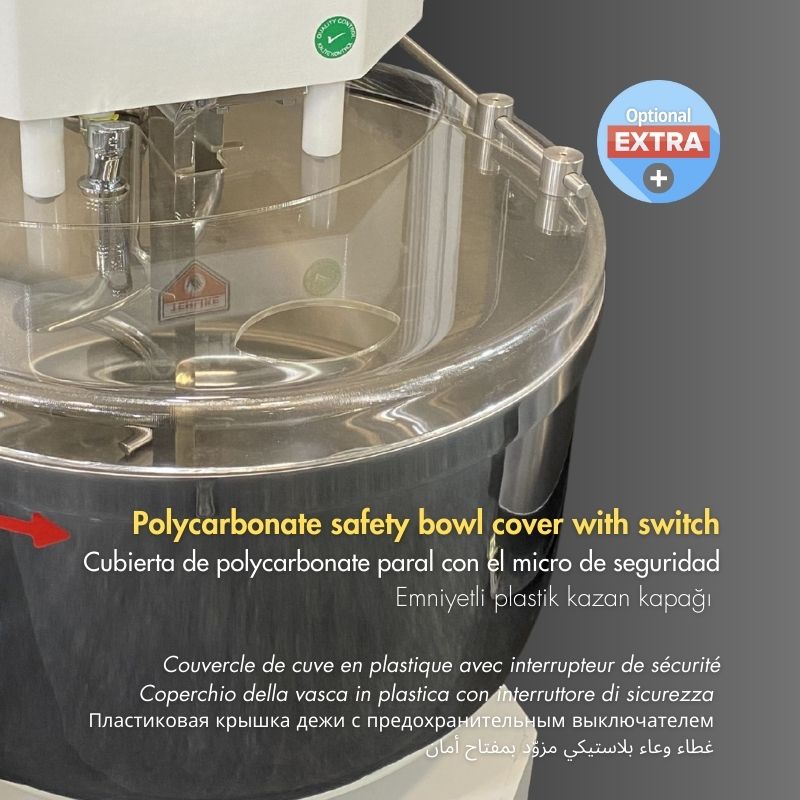

  • Polycarbonate bowl cover
  • Additional motor or higher-power motor configuration
  • Variable speed control with PLC inverter
  • Electrical supply: 220/230 VAC – 50/60 Hz – 3NPE
Technical Specifications
Model EVOMIX25 EVOMIX35 EVOMIX50 EVOMIX80 EVOMIX100

Flour/Harina/ Un/Farine

Farina/Мука/ دقيق

(kg)

 25 35 60 80 100

Dough/Masa/ Hamur/Pâte

Impasto/Тесто/ عجين

(kg)

 40 60 100 130 160

Bowl Volume

Artesa/Kazan

Cuve/Vasca

Чаша/وعاء (lt)

 63 100 170 230 260

Spiral Power

Espiral/Spiral

Спираль/حلزوني KW

 1.5 / 2.5 2.5 / 3.5 3.5 / 5.5 3.5 / 6.0 6.0 / 9.0

Bowl Motor

Artesa/Kazan

Cuve/Vasca

Чаша/وعاء (KW)

 Extra Extra 0.75 0.75 0.75

Spiral

Espiral/Spiral

Спираль/حلزوني (rpm)

 90-105 90-105 90-105 90-105 90-105

Bowl Motor

Artesa/Kazan

Cuve/Vasca

Чаша/وعاء (rpm)

 14 14 14 14 14
Weight / Peso Neto / Ağırlık / Poids / Peso / Вес / الوزن (kg) 260 490 570 680 780

(W) Width / Ancho / Genişlik / Largeur / Larghezza / Ширина / العرض

(mm)

 525 625 725 825 925

(L) Length / Largo / Uzunluk / Longueur / Lunghezza / Длина / الطول

(mm)

 1020 1180 1212 1312 1412
(H) Height / Altura / Yükseklik / Hauteur / Altezza / Высота / الارتفاع (mm) 1080 1290 1360 1360 1530
Power / Potencia / Güç / Puissance / Potenza / Мощность / القدرة 380V 50/60Hz N+PE 3 Phase
