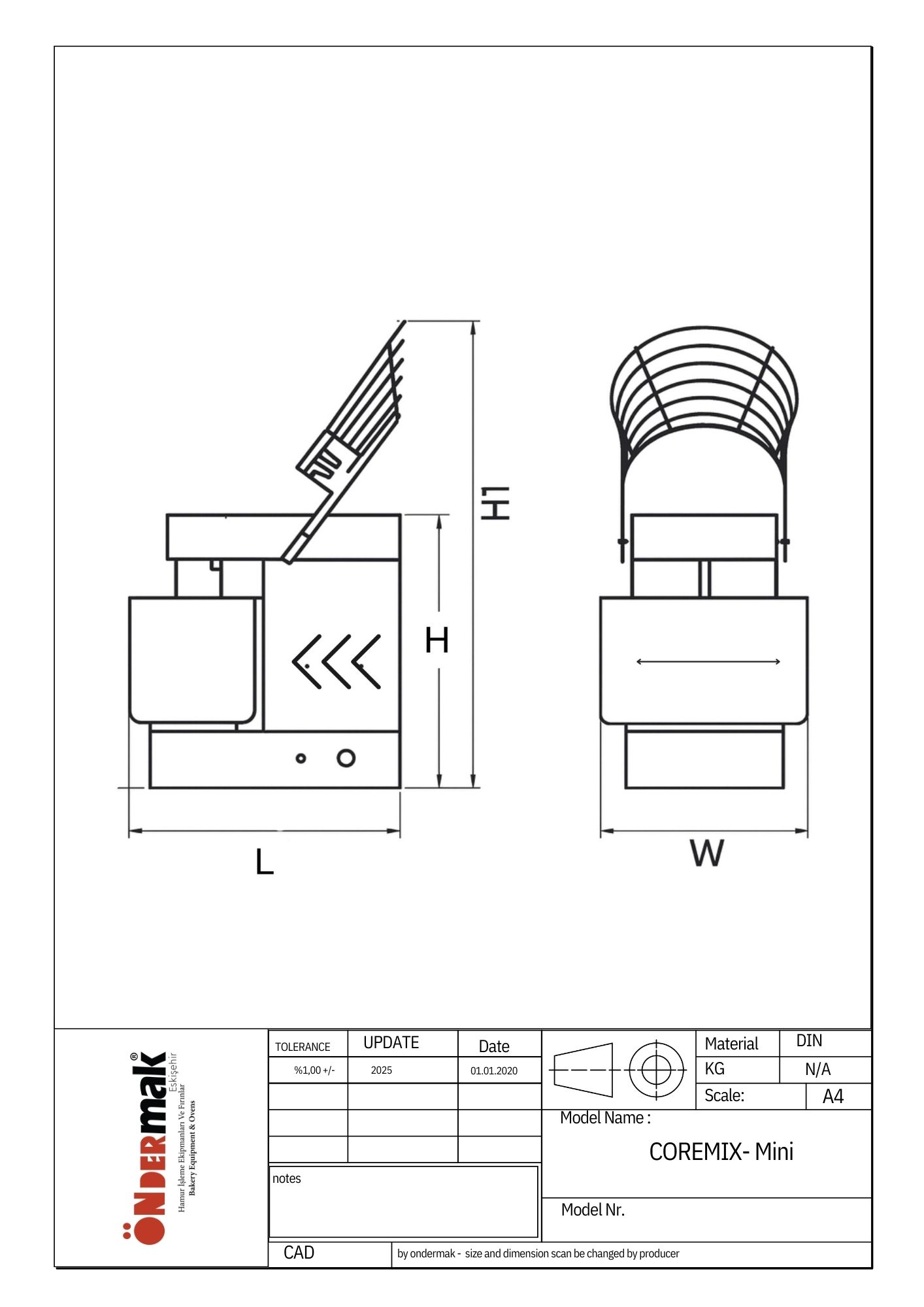

TECHNICAL DRAWING

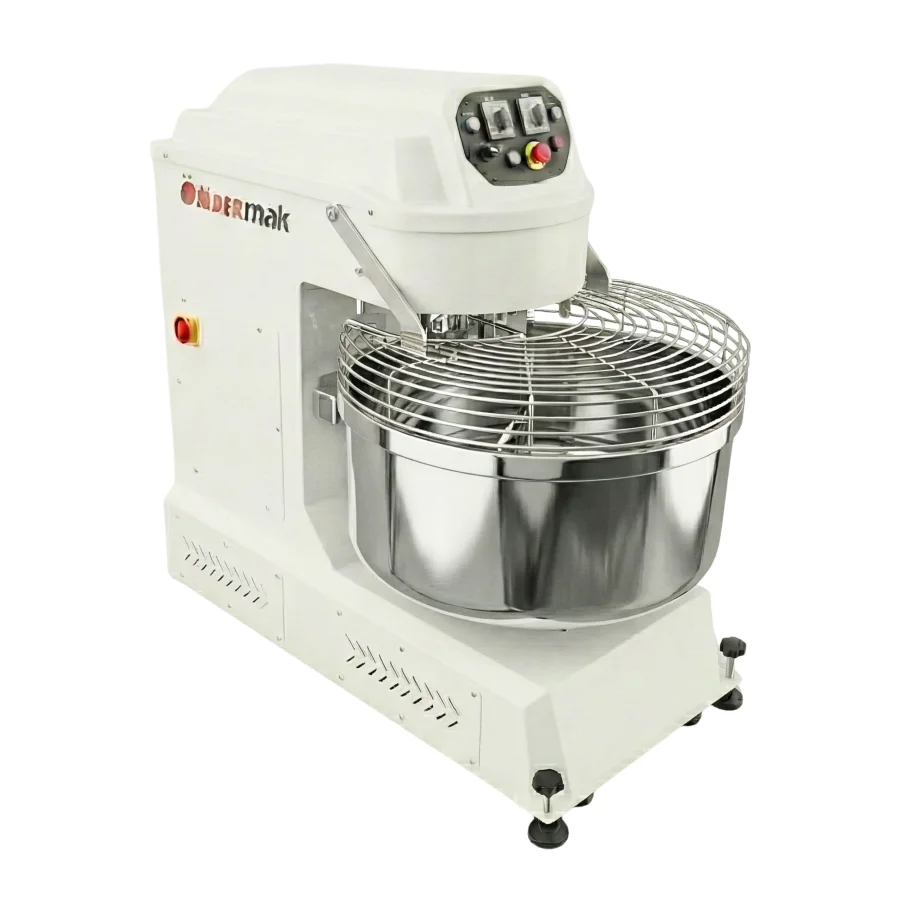

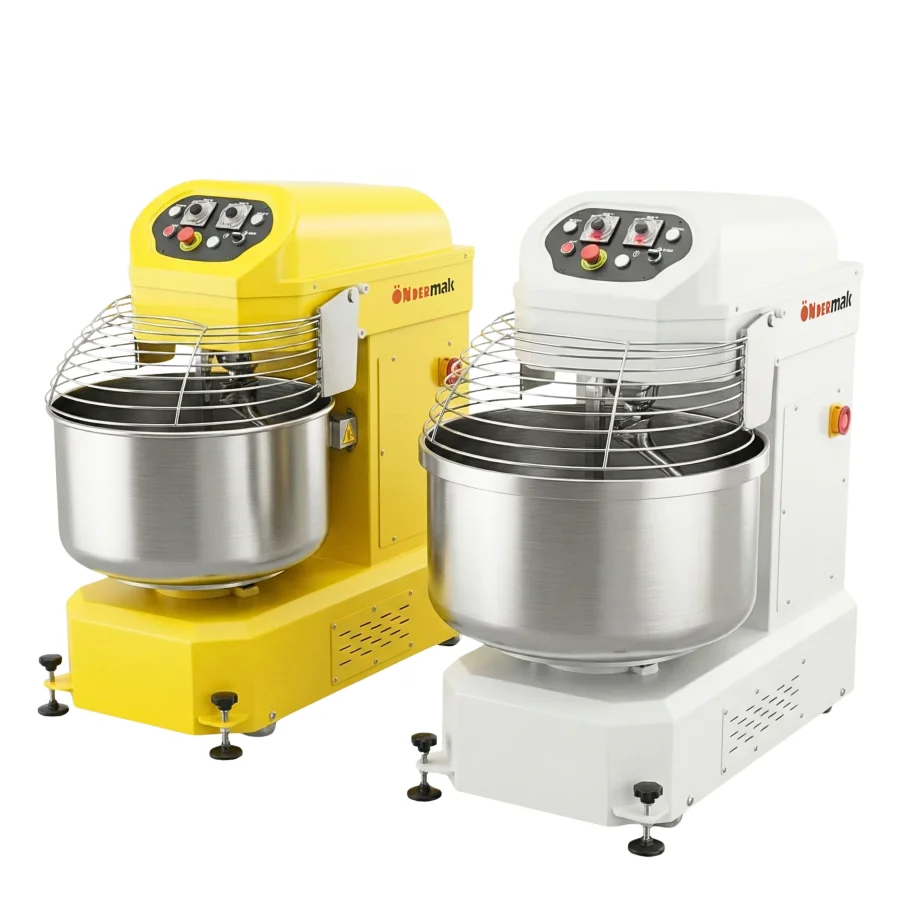

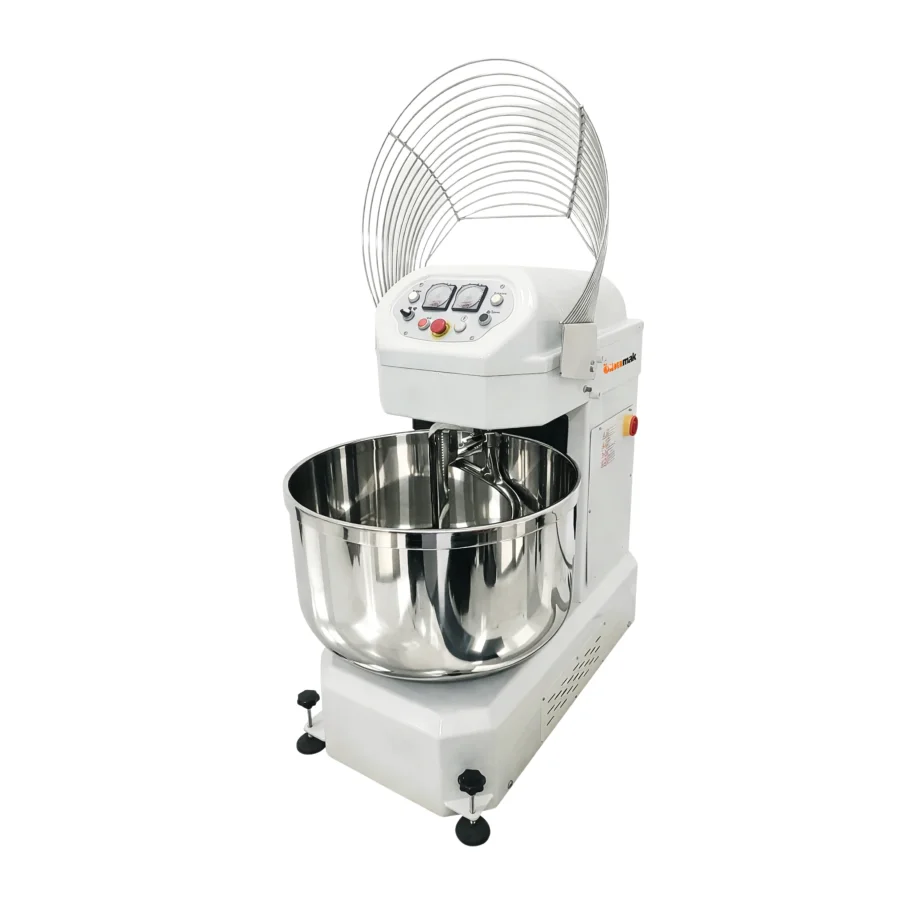

  • Fixed bowl spiral mixer

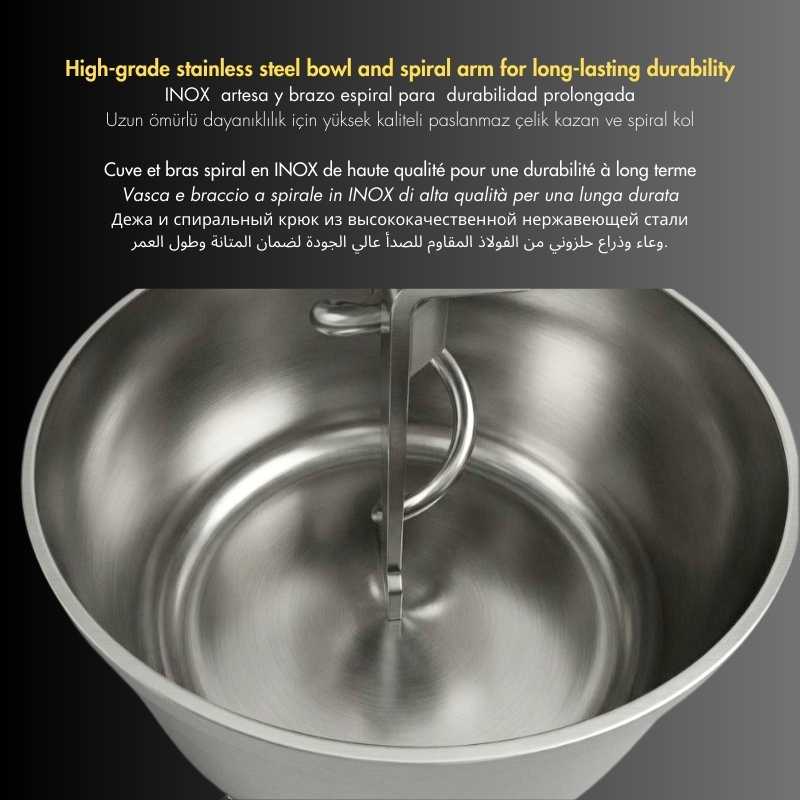

  • Stainless steel mixing bowl, spiral arm, and breaker bar (AISI 304)
  • Direct transmission with pulley and belt system, optimized for dough hydration levels of minimum 60%
  • Two independent motors for spiral arm and bowl rotation

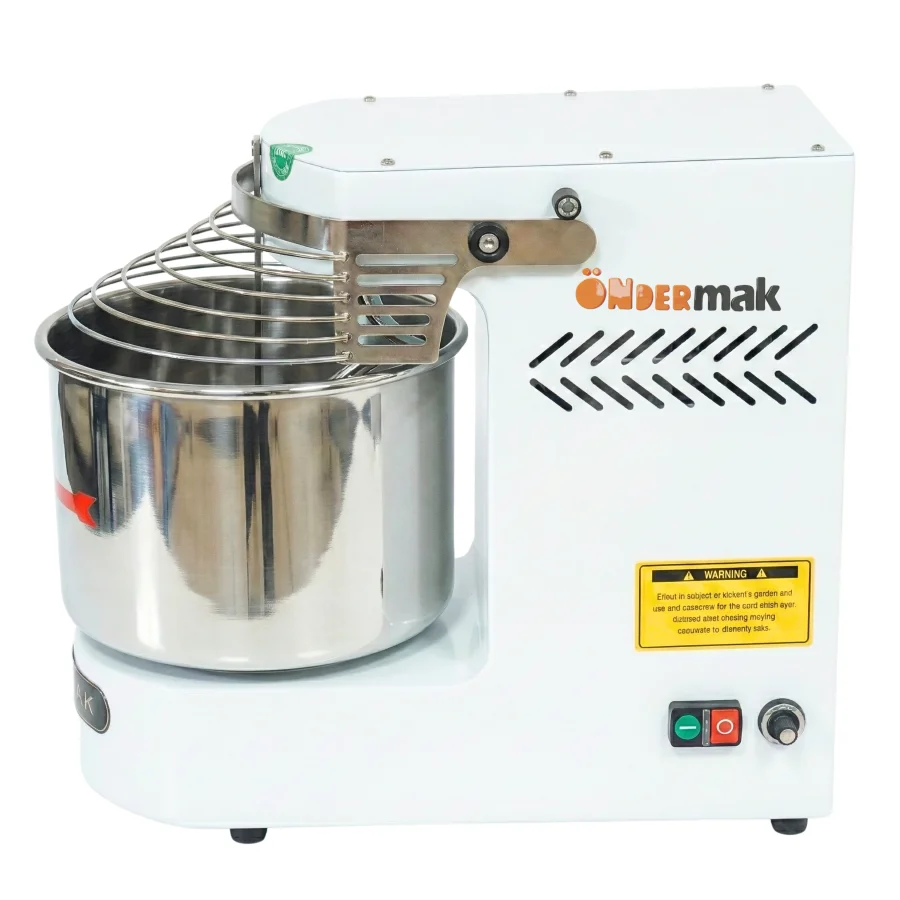

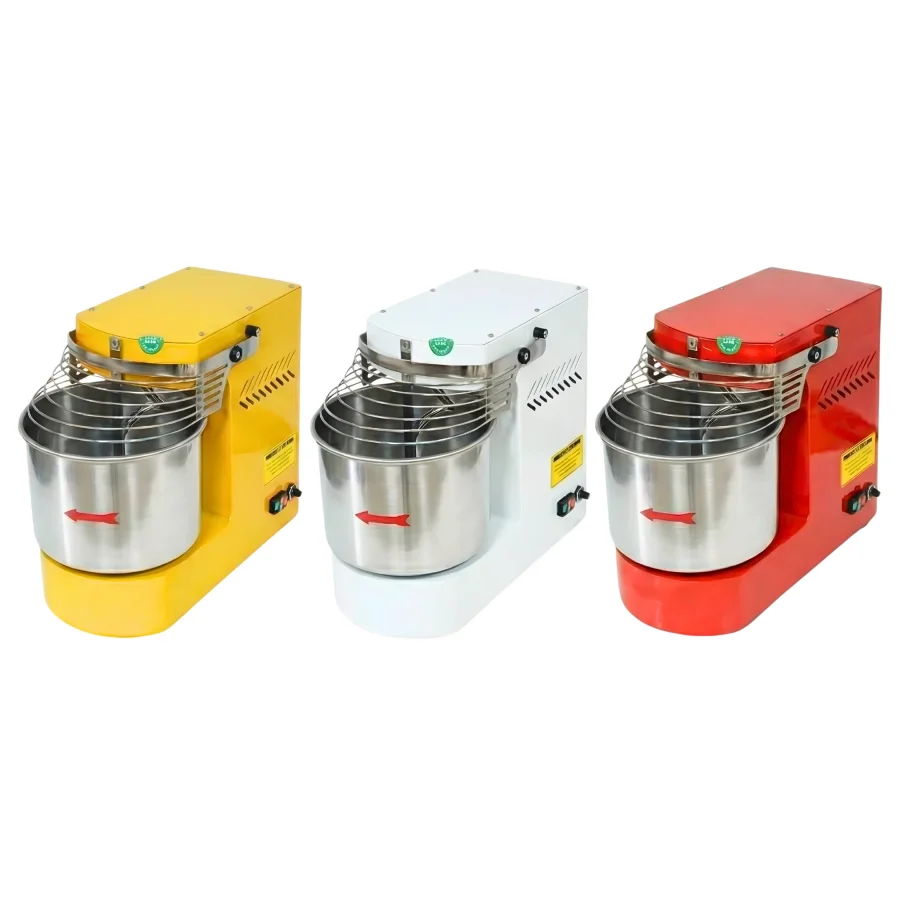

  • Coremix 05 / Coremix 12 / Coremix 25 models equipped with a single motor
  • Two mixing speeds as standard
  • Dual timers for automatic operation
  • Reverse bowl rotation for improved dough consistency

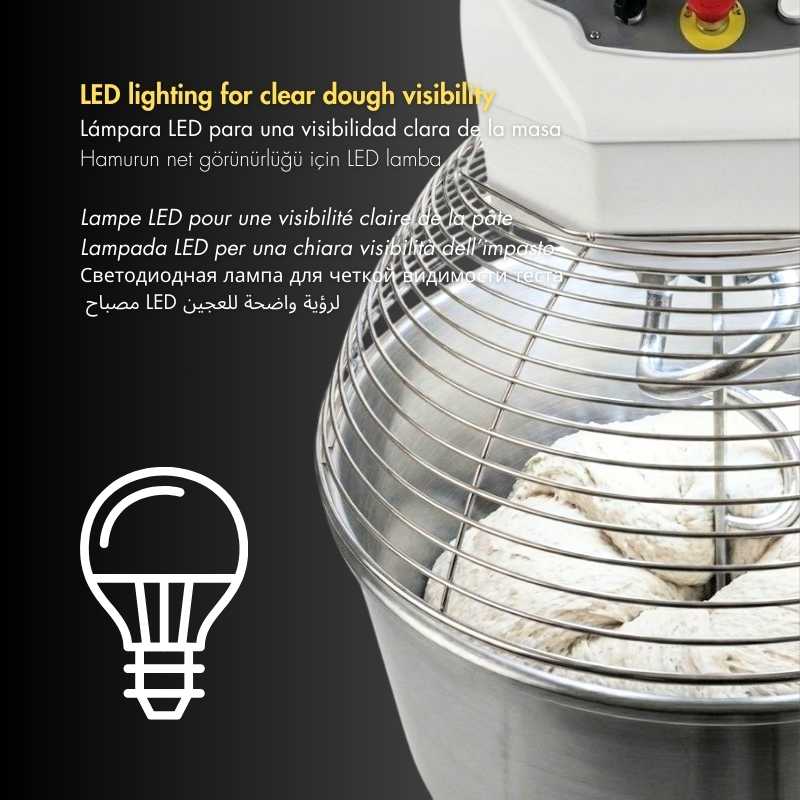

  • LED bowl illumination as standard
  • JOG function for easy bowl cleaning
  • High-strength painted steel body with epoxy-coated plastic head

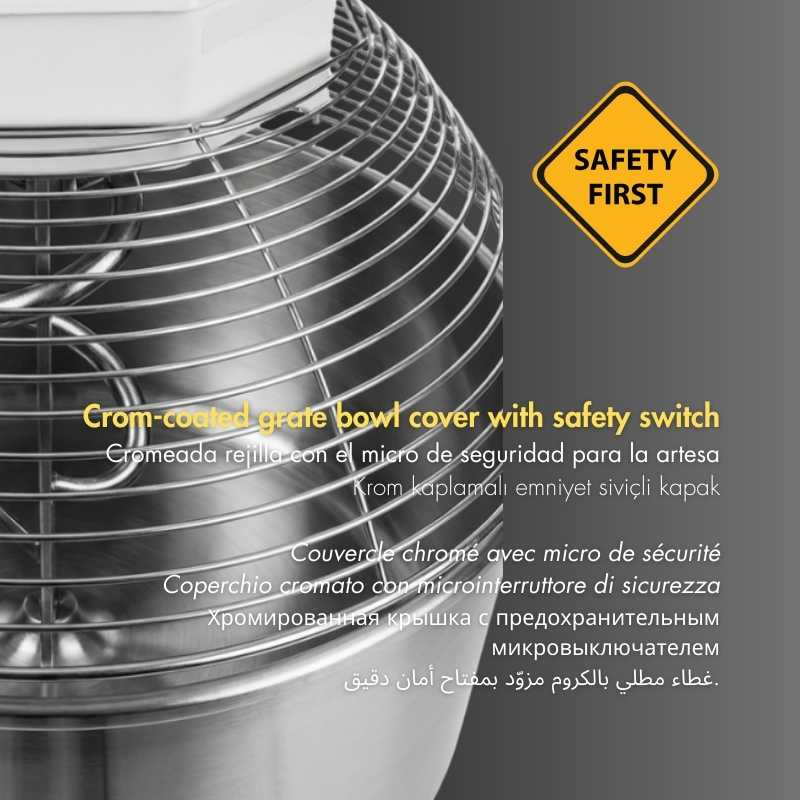

  • Chrome-plated bowl safety guard with safety microswitch

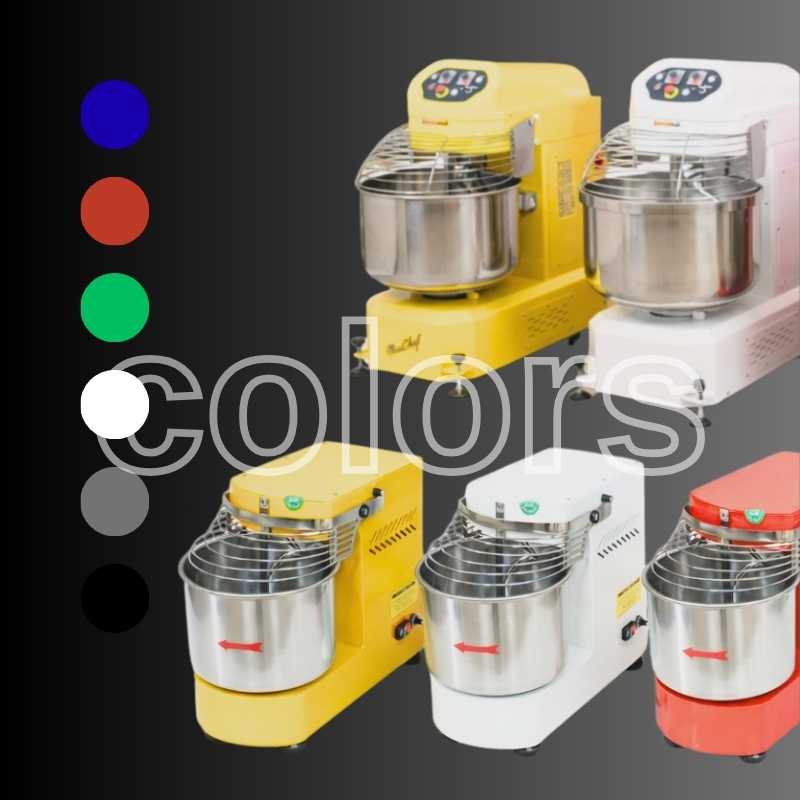

  • RAL color options available upon request

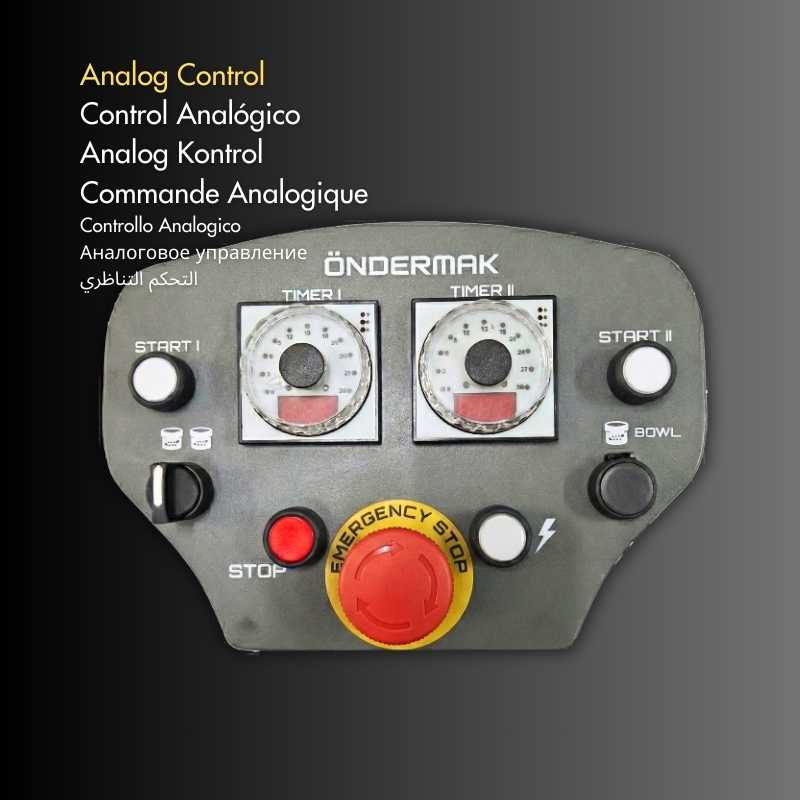

  • Electromechanical control panel
  • Easy access for cleaning and maintenance
  • 2-year warranty
  • CE-compliant safety standards



Optional Configurations

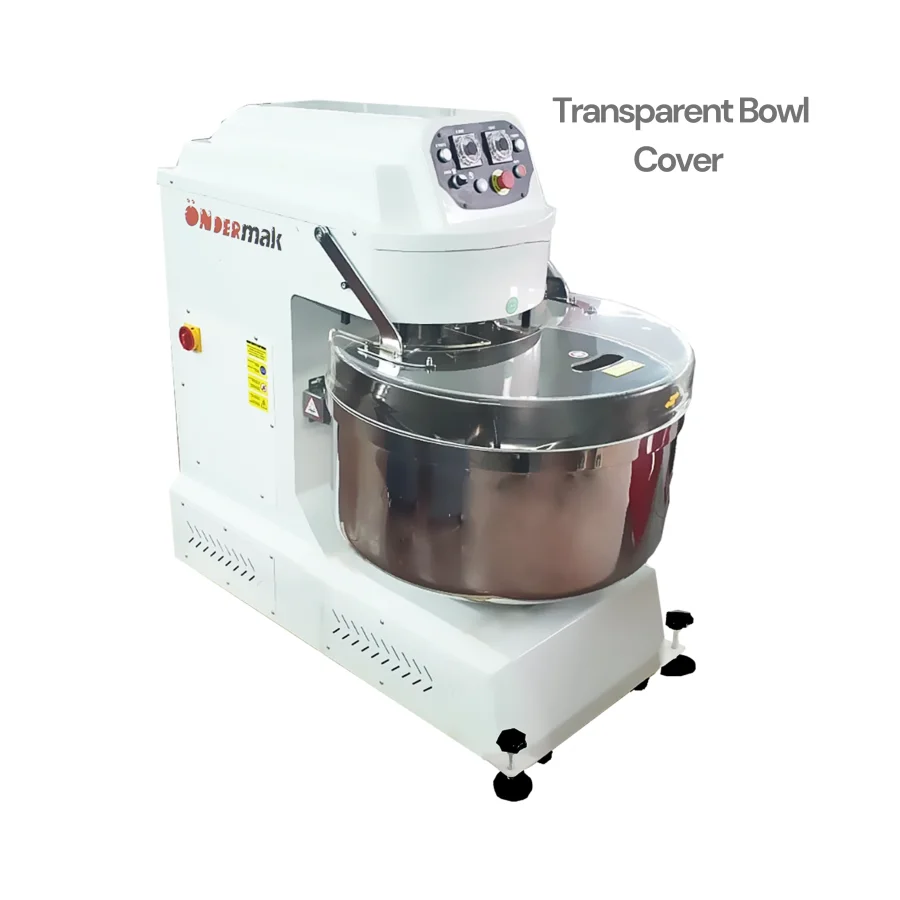

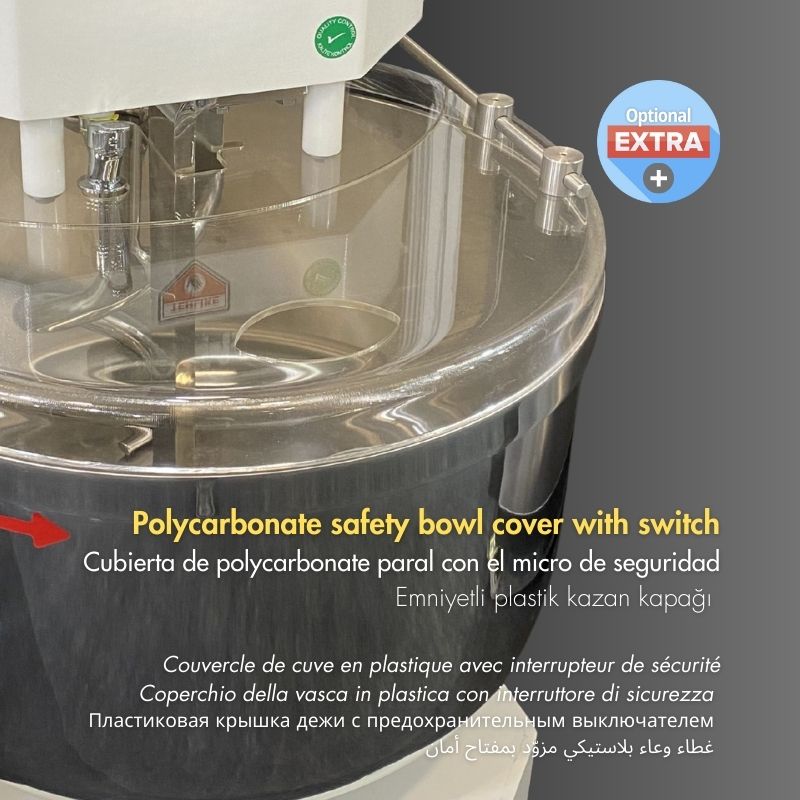

  • Transparent polycarbonate bowl cover

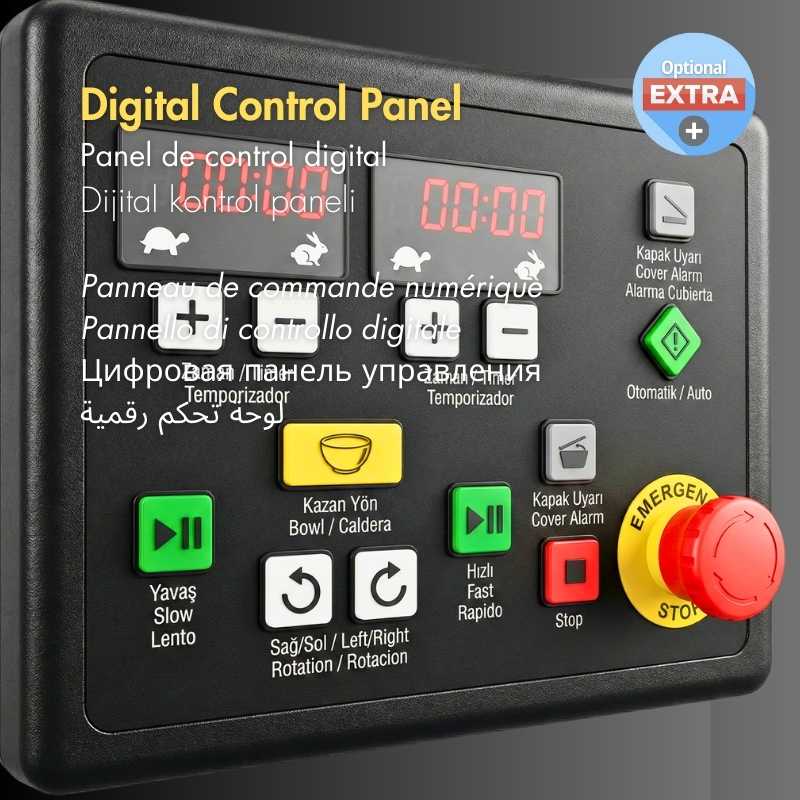

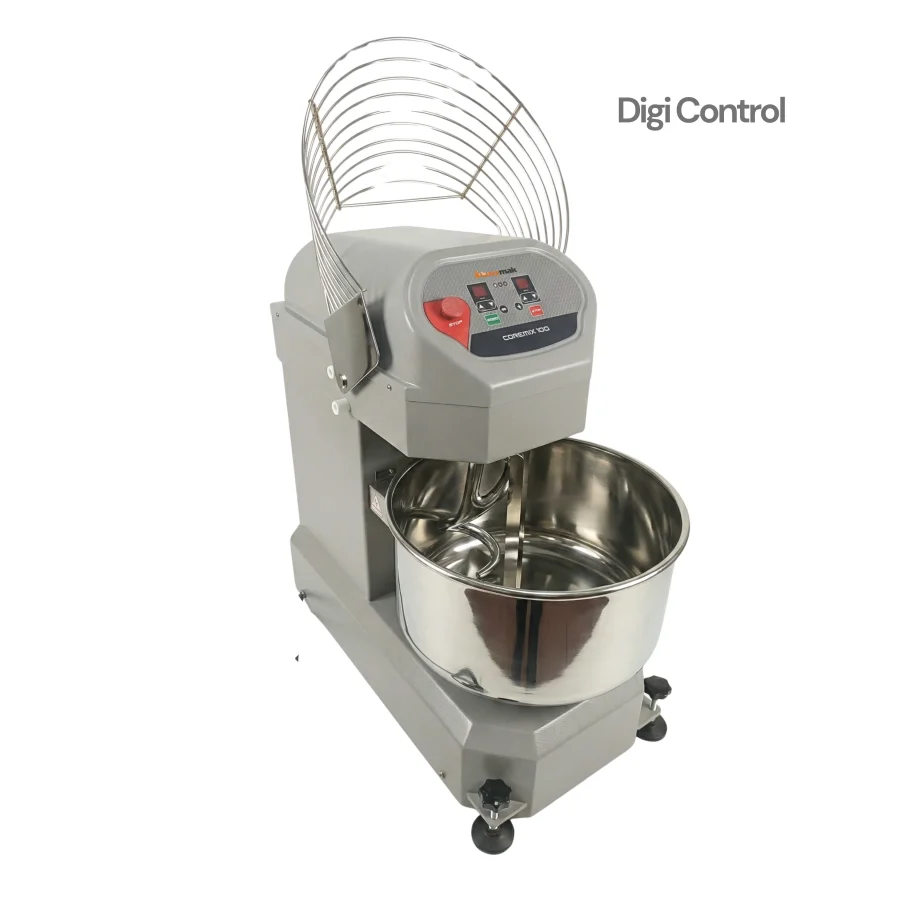

  • Digital control panel
  • Additional motor or higher-power motor configuration

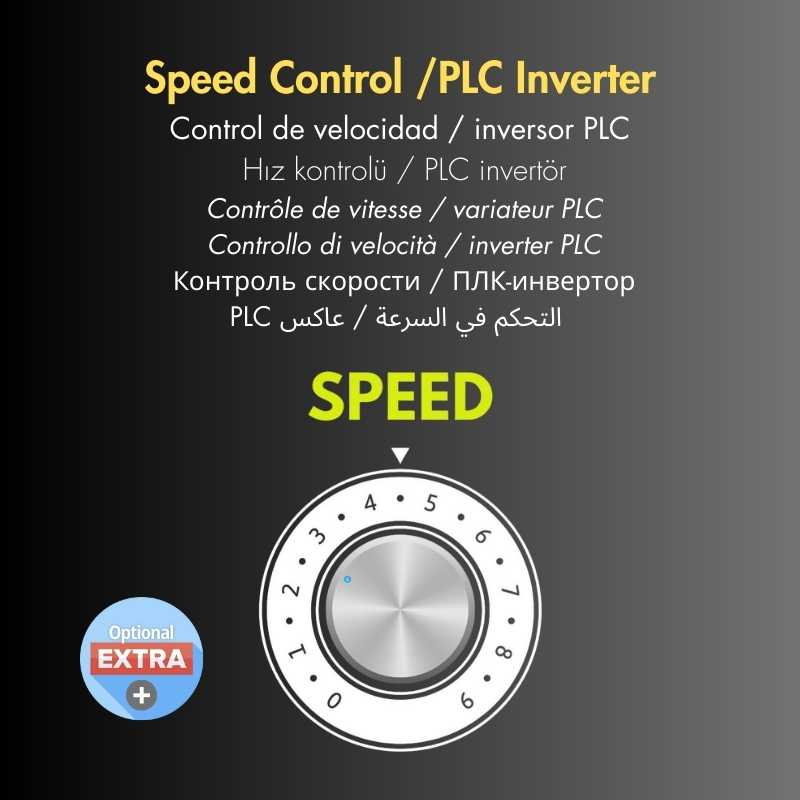

  • Variable speed control with PLC inverter
  • Electrical supply: 220/230 VAC – 50/60 Hz – 3NPE
MODELS & TECHNICAL SPECS.
Model COREMIX 05 COREMIX 12 COREMIX 25 COREMIX 40 COREMIX 60 COREMIX 80 COREMIX 100

Flour/Harina/Un/Farine/Farina/Мука/دقيق

(kg)

 5 12 25 40 60 80 100

Dough/Masa/Hamur/Pâte/Impasto/Тесто/عجين

(kg)

 9 20 40 65 100 130 160

Bowl Volume/Artesa/Kazan/Cuve/Vasca/Чаша/وعاء

(lt)

 12 33 63 100 170 230 260

Spiral Power/Espiral/Spiral/Спираль/حلزوني

KW

 0.55 0.6 / 0.9 1.1/1.7 2.5 / 3.5 3.5 / 5.5 3.5/6.0 6.0/9.0

Bowl Motor/Artesa/Kazan/Cuve/Vasca/Чаша/وعاء

(KW)

 – – Extra 0.75 0.75 0.75 0.75

Spiral/Espiral/ Спираль/حلزوني

(rpm)

 50-300 105-210 105-210 105-210 105-210 105-210 105-210

Bowl Motor/Artesa/Kazan/Cuve/Vasca/Чаша/وعاء

(rpm)

 - 14 14 14 14 14 14

Weight / Peso Neto / Ağırlık / Poids / Peso / Вес / الوزن

(kg)

 35 160 225 350 570 680 780

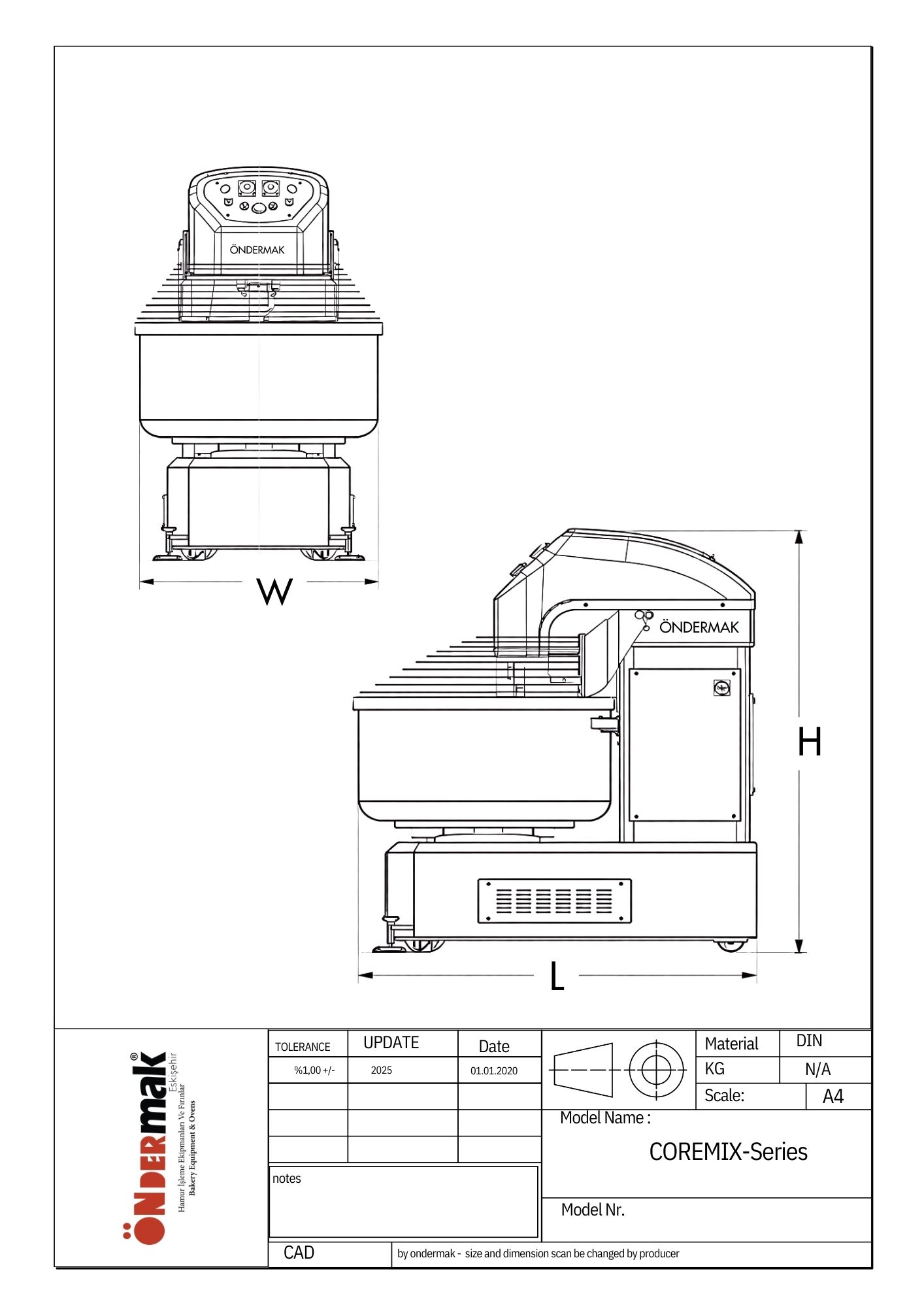

(W) Width / Ancho / Genişlik / Largeur / Larghezza /Ширина / العرض

(mm)

 300 432 561 632 732 837 850

(L) Length / Largo / Uzunluk / Longueur / Lunghezza / Длина / الطول

(mm)

 547 802 986 1096 1174 1270 1350

(H) Height / Altura / Yükseklik / Hauteur / Altezza / Высота / الارتفاع

(mm)

 528 974 1184 1353 1413 1451 1400
Power / Potencia / Güç / Puissance / Potenza / Мощность / القدرة 230V/50-60Hz  380 V50/60Hz N+PE 3 Phase
