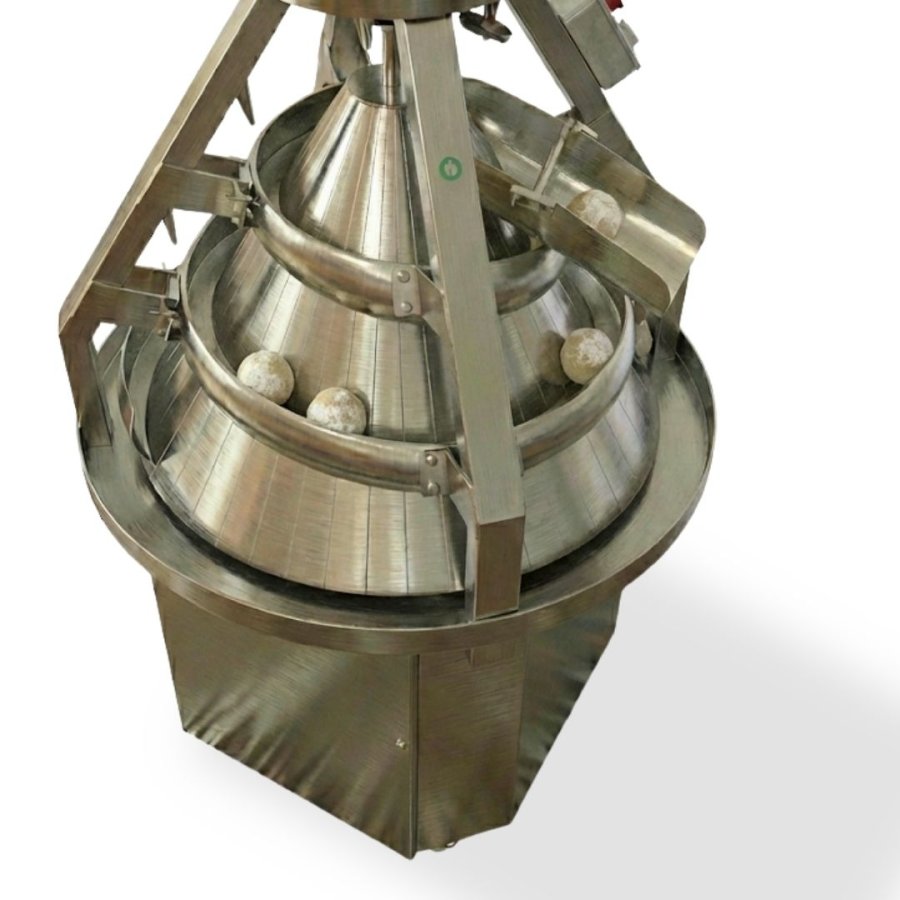

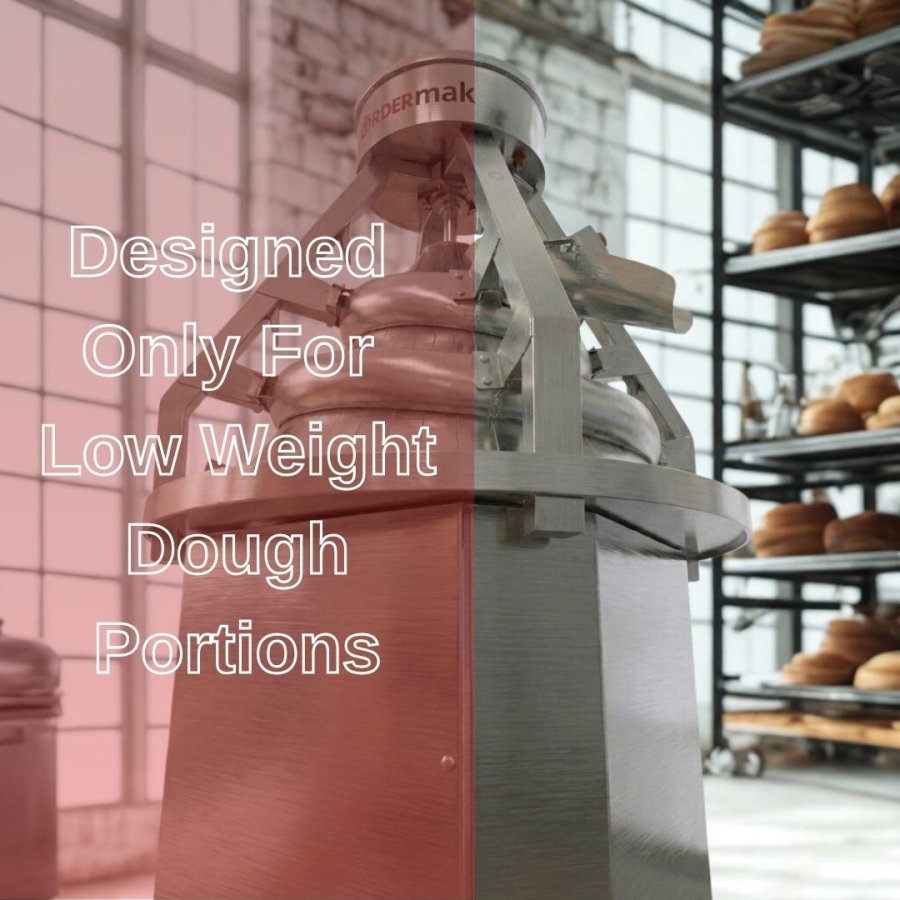

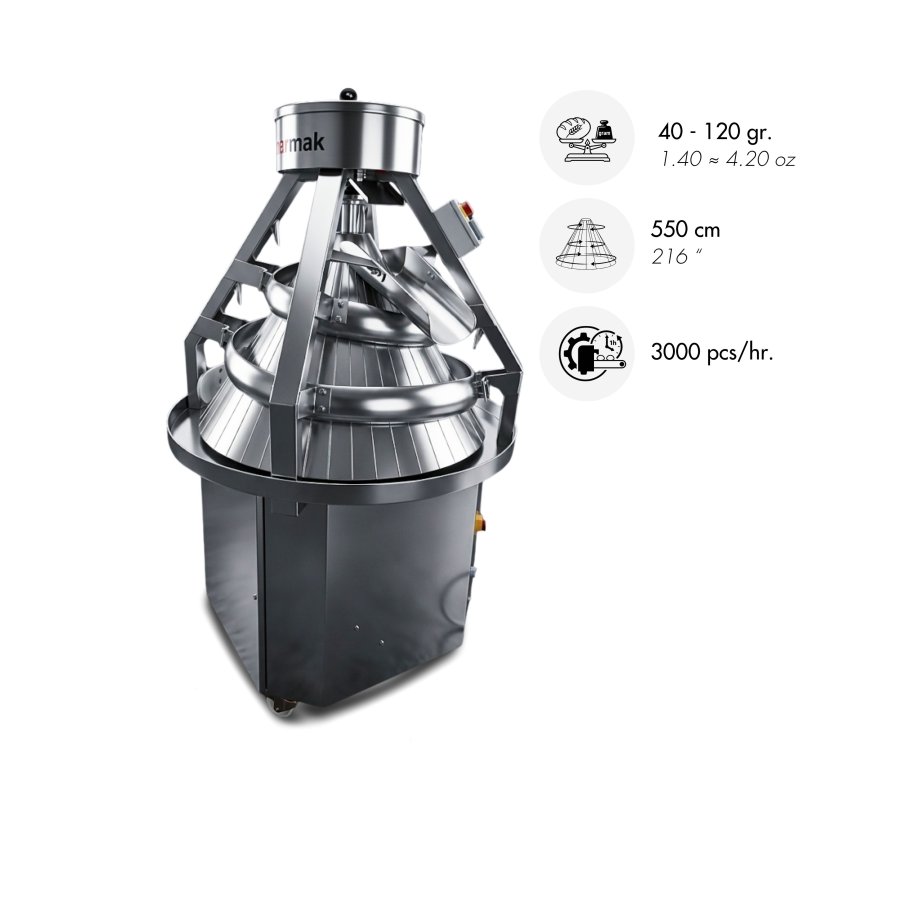

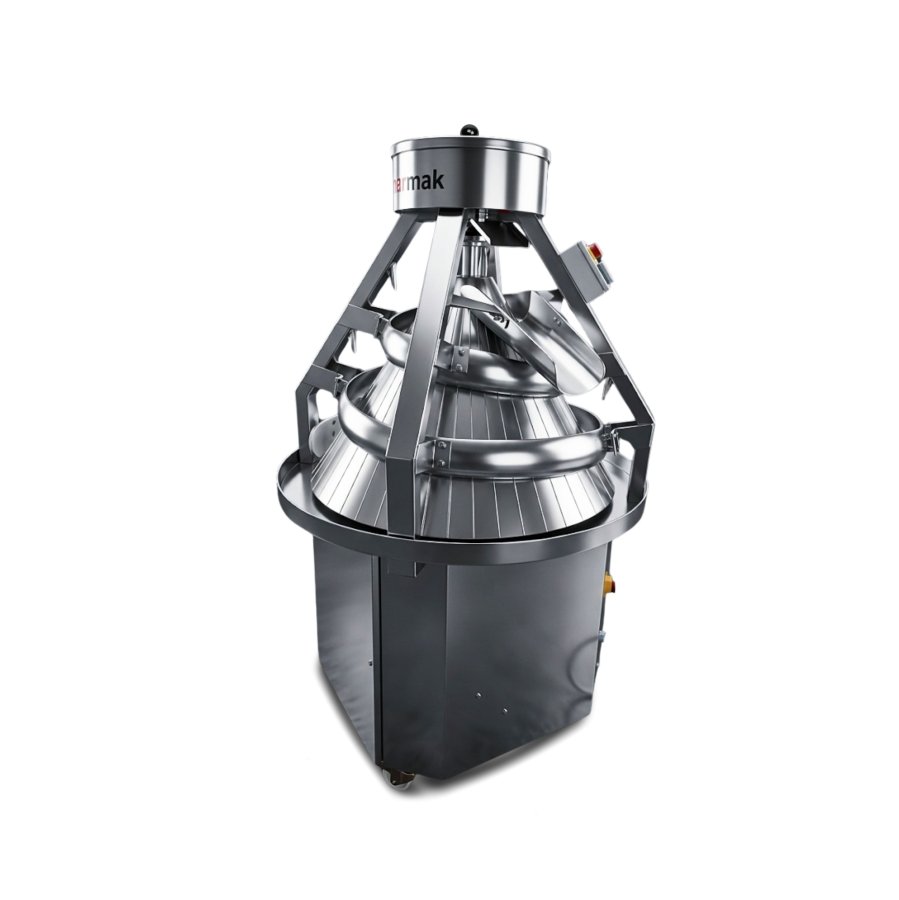

Ondermak-engineered cone and channel system ensuring precise and uniform rounding of low-gram dough

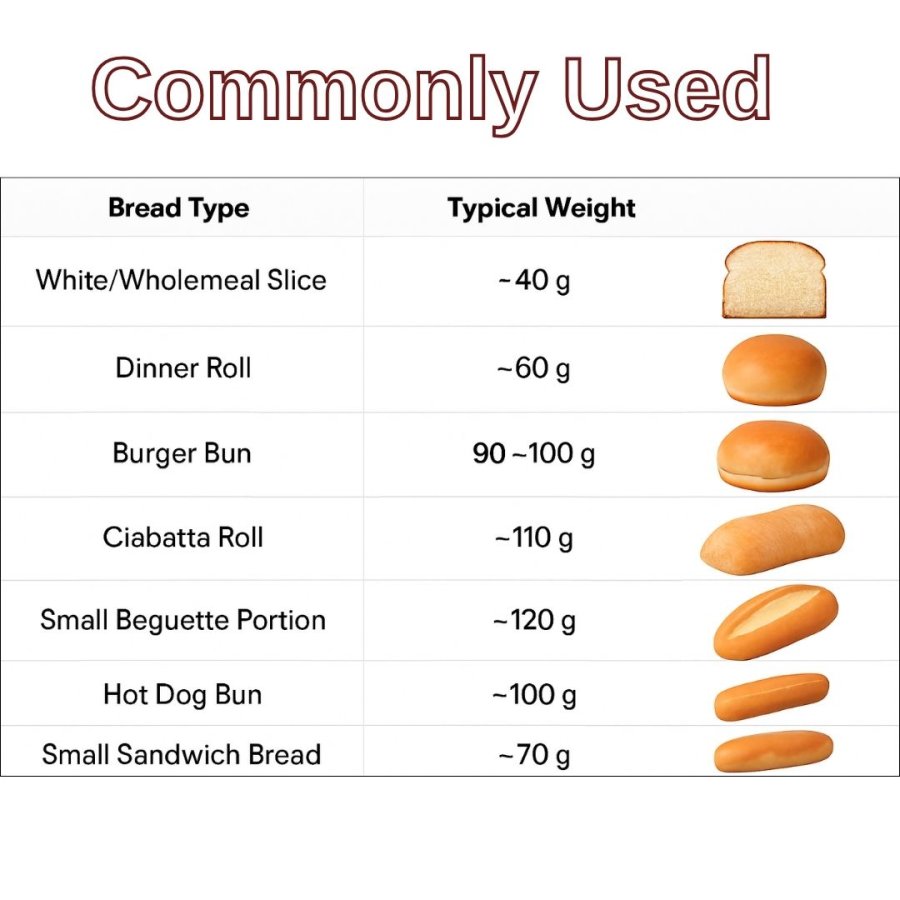

Dough weight range: 40–120 g
Fixed track design – no operator adjustment required
3-track rounding system for consistent, perfectly shaped dough balls

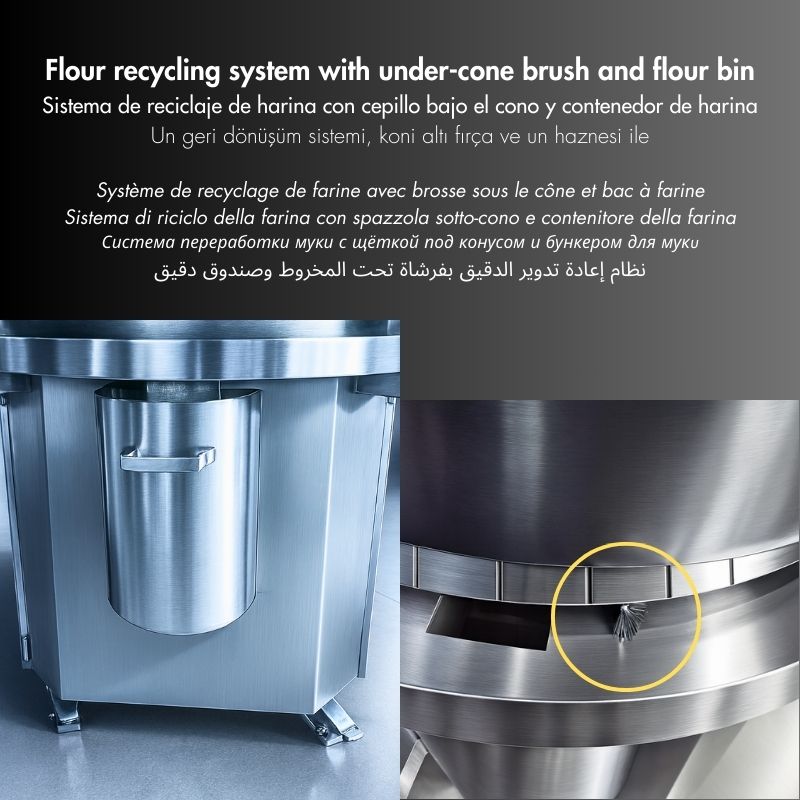

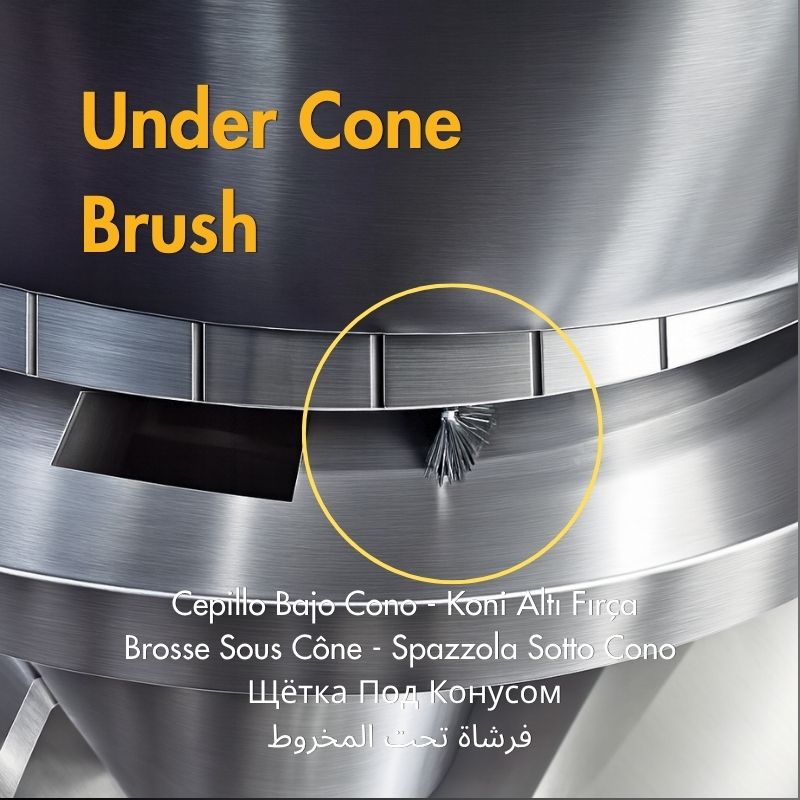

Integrated under-cone flour cleaning brush

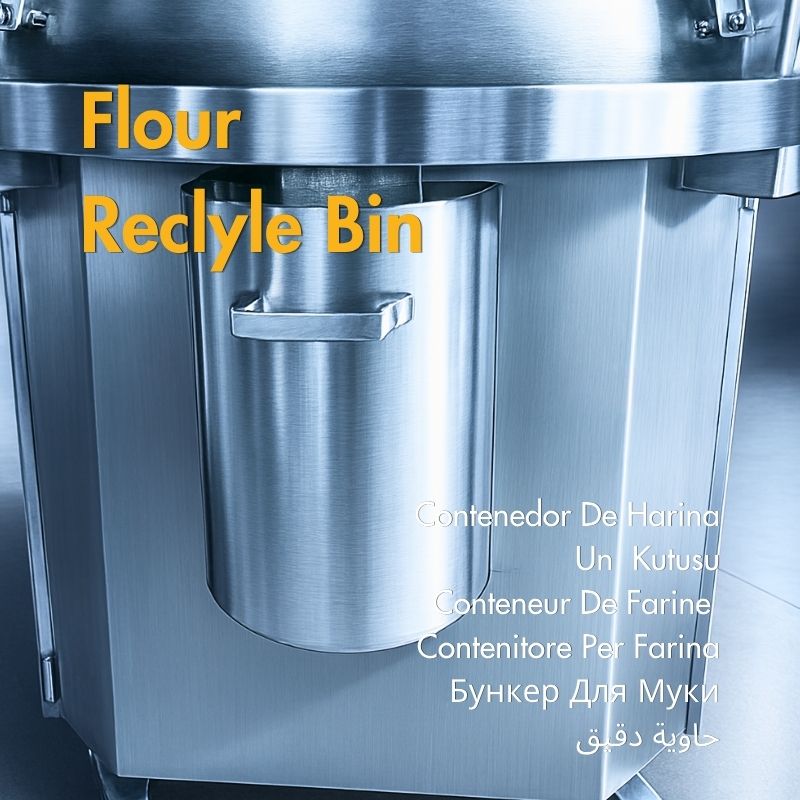

Flour recovery bin for reduced flour consumption and improved cost efficiency

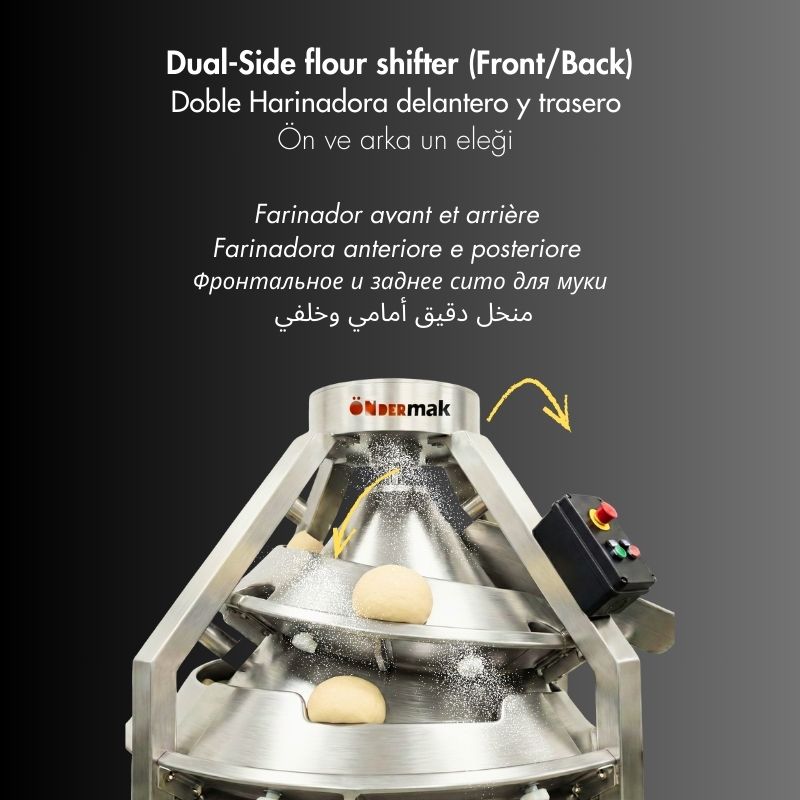

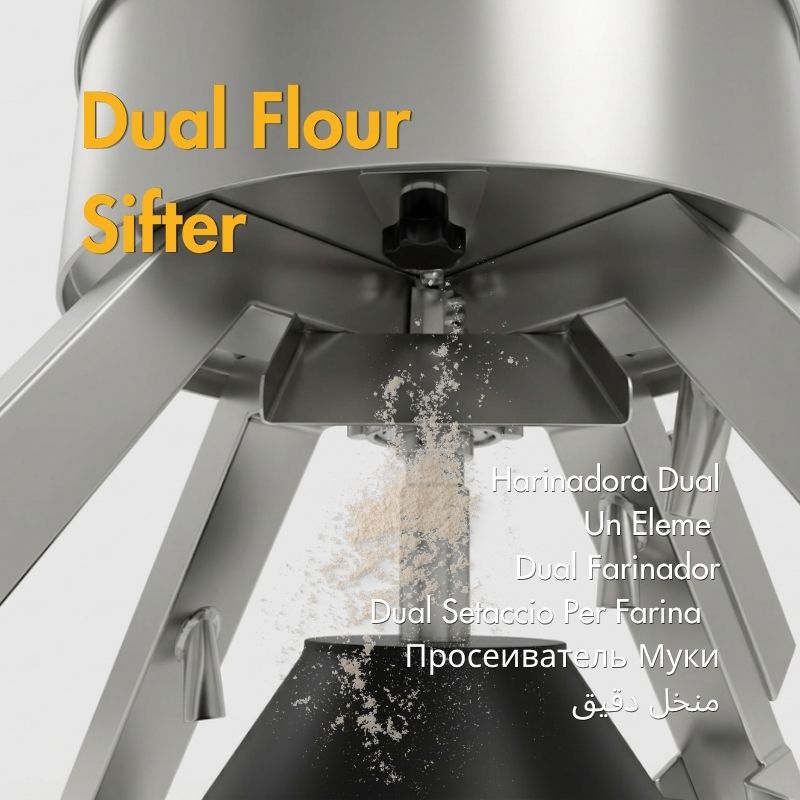

Two-way adjustable flour duster unit to minimize dough adhesion
Low-noise operation, compliant with industrial working environments

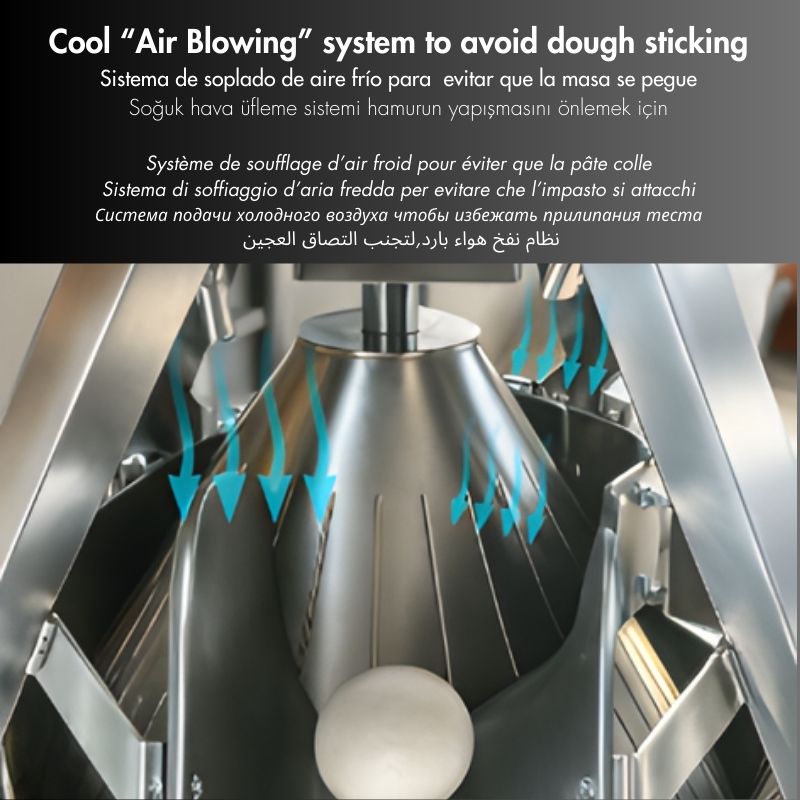

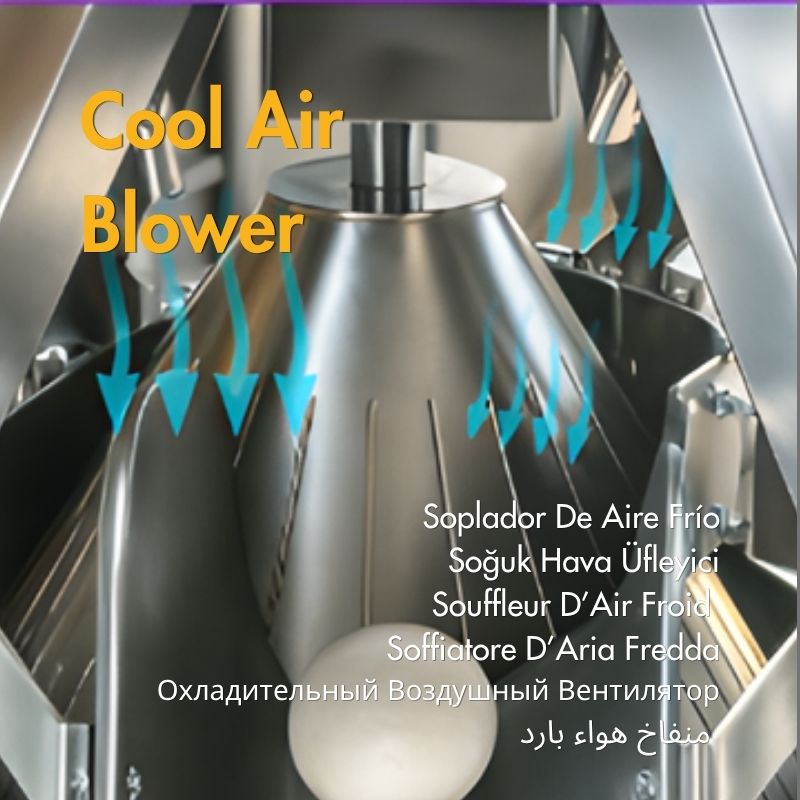

Cold air blower system to prevent dough sticking during processing

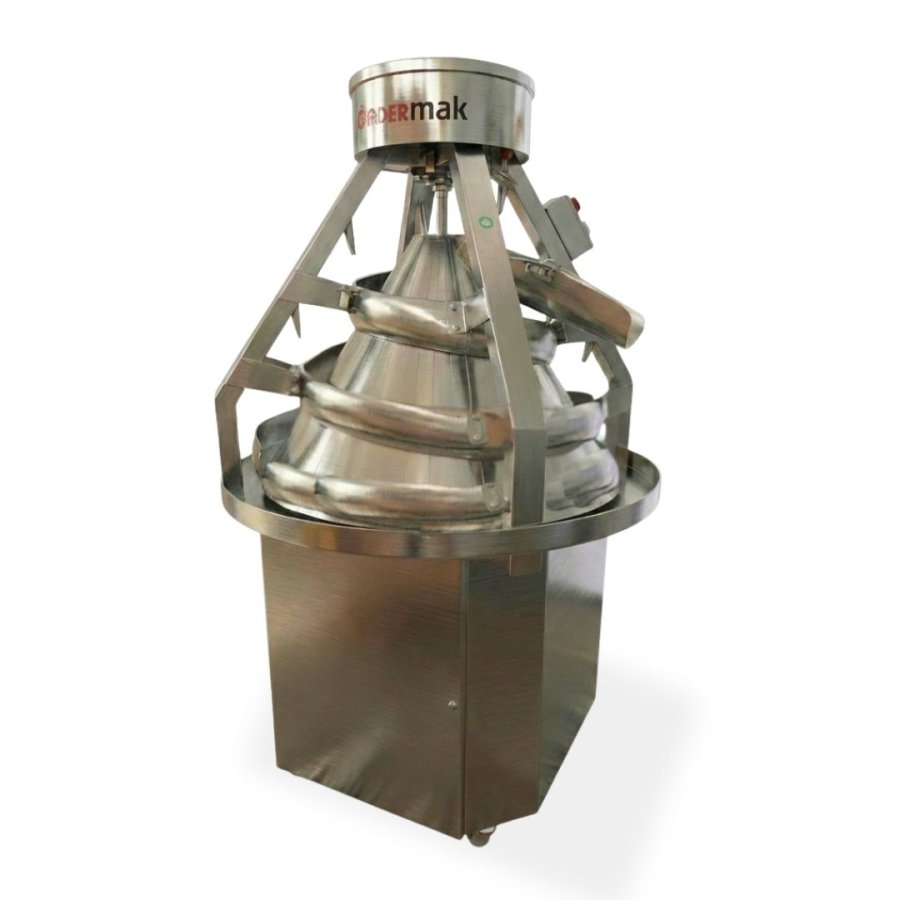

Fully stainless steel construction with reinforced profile-based structural frame
Forged cast aluminum cone and tracks for long service life and stable performance
Easy to clean and low maintenance design
CE & EAC certified, compliant with EU machinery directive
2-year manufacturer warranty

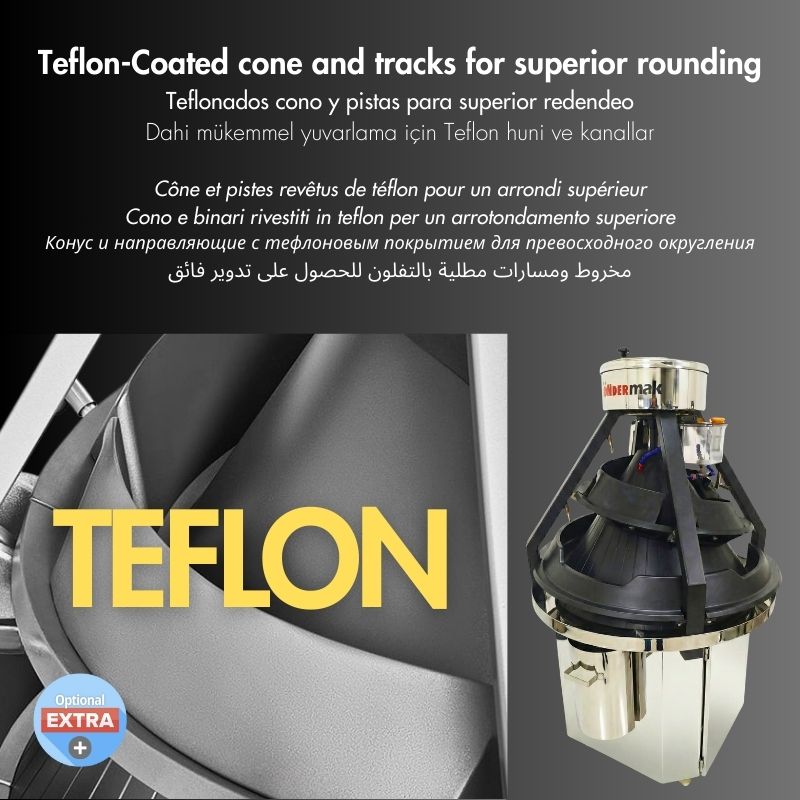

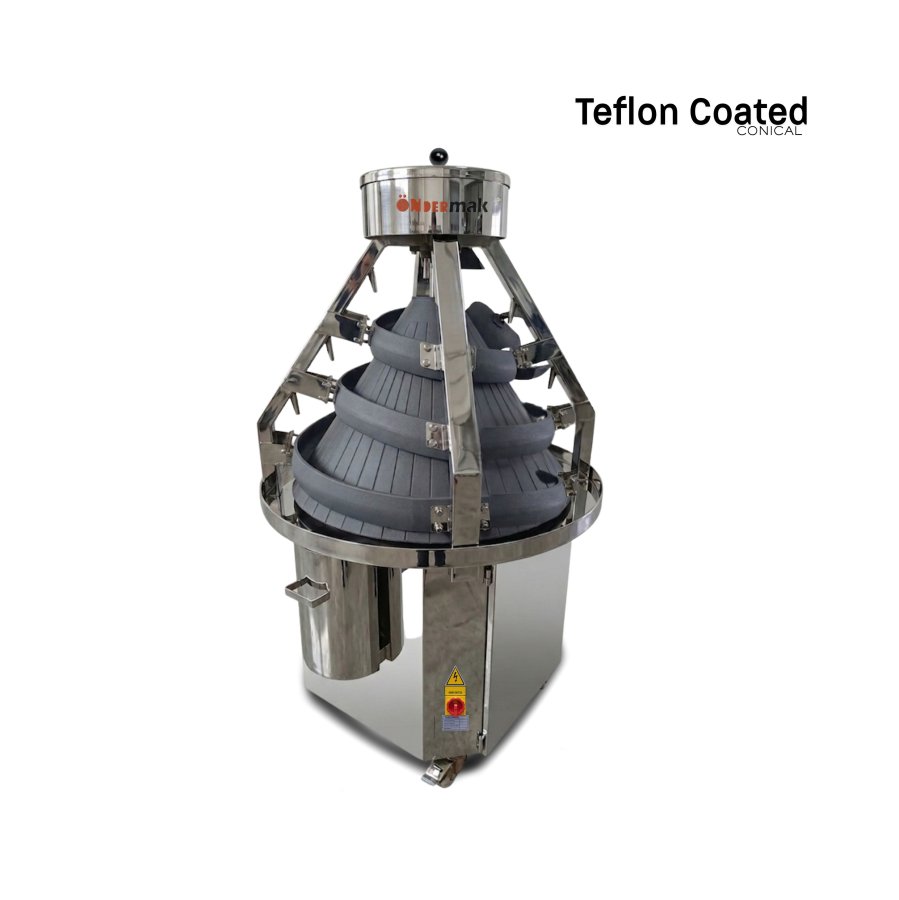

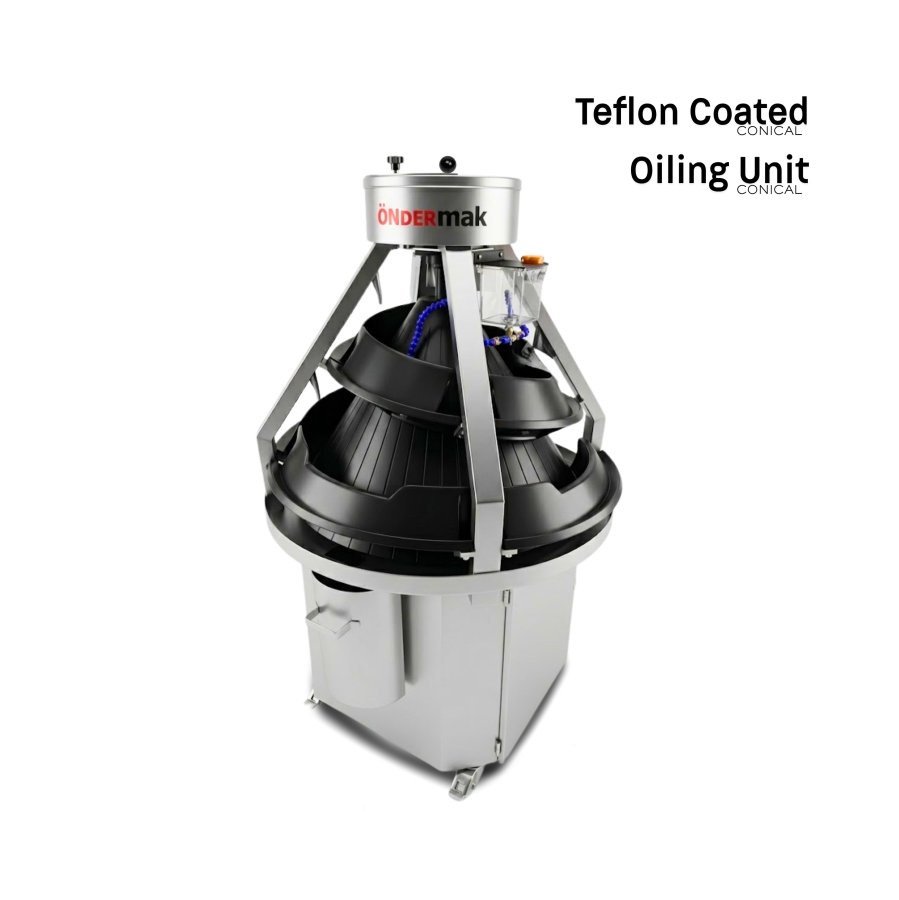

Teflon-coated cone and tracks

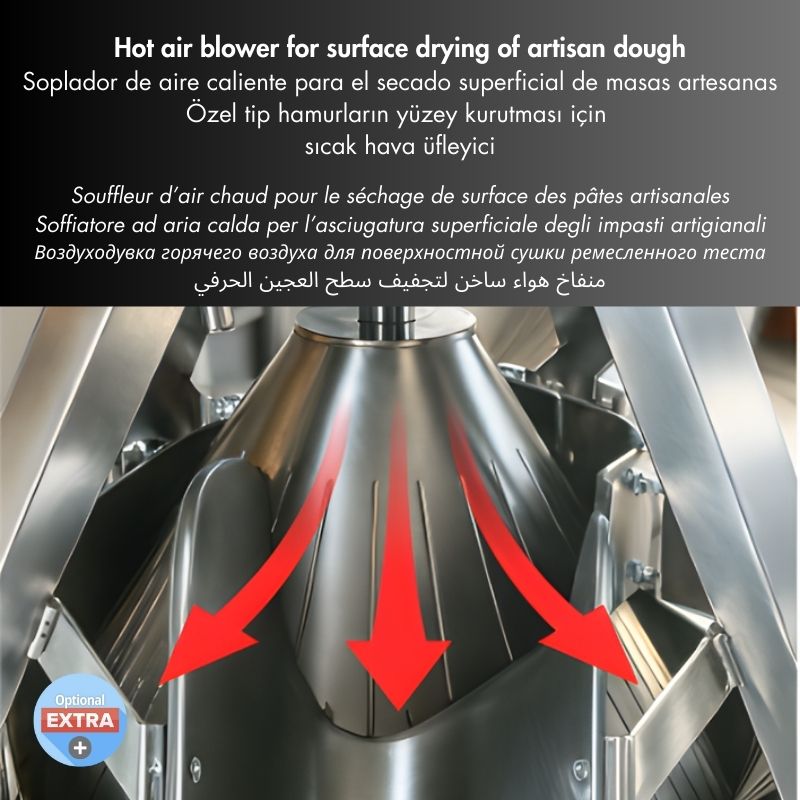

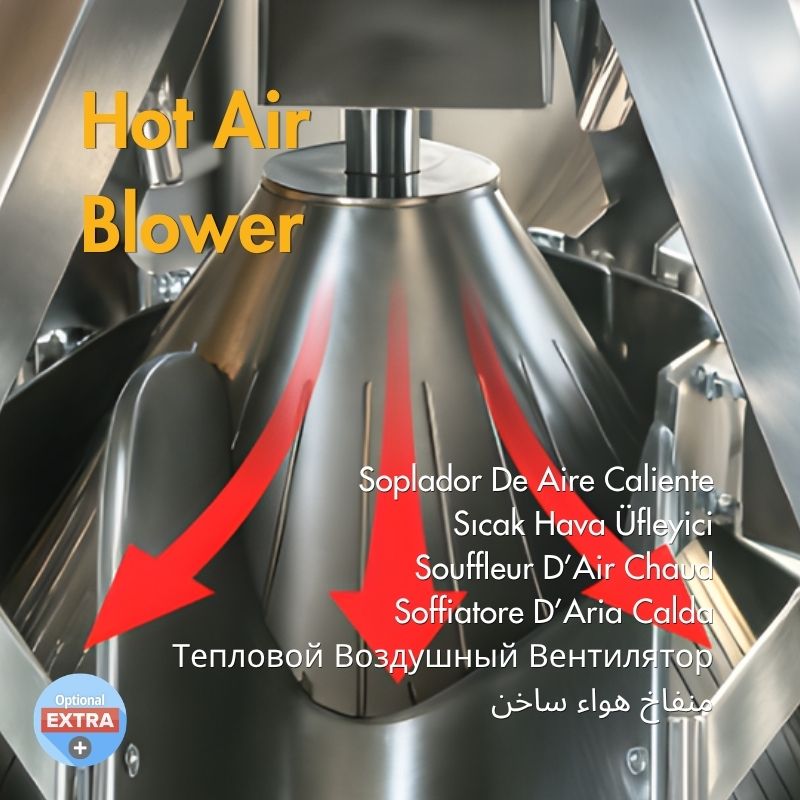

Hot air blower for special dough formulations

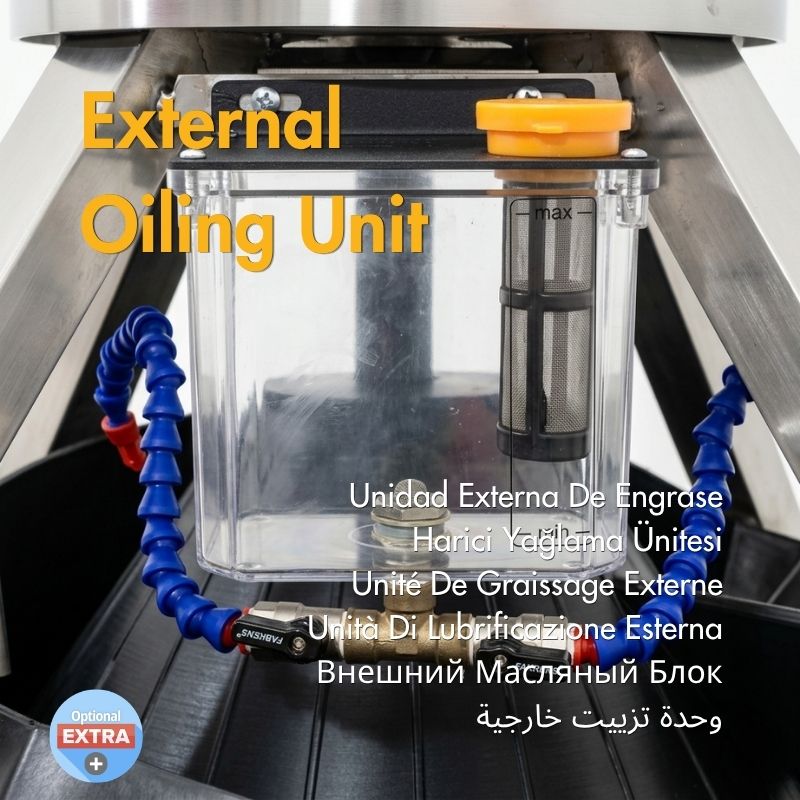

Oil sprayer for high-hydration dough processing

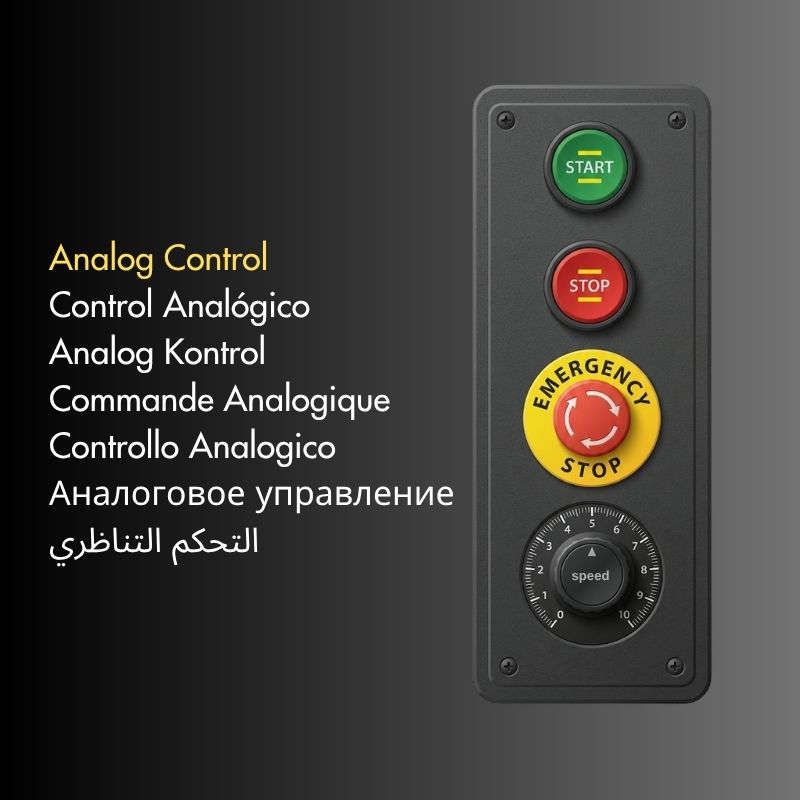

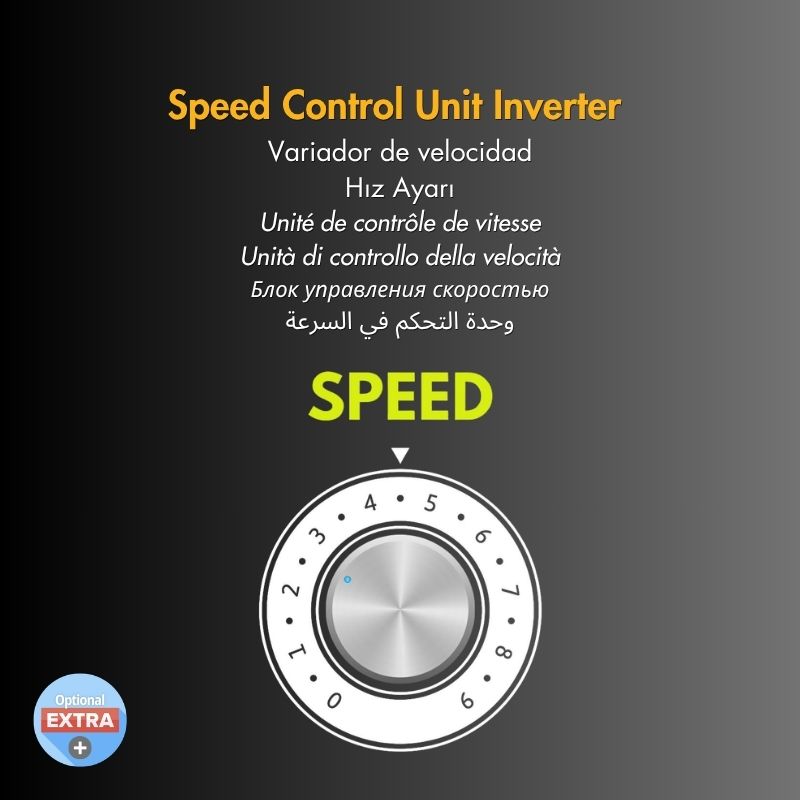

Variable speed control unit for optimized performance

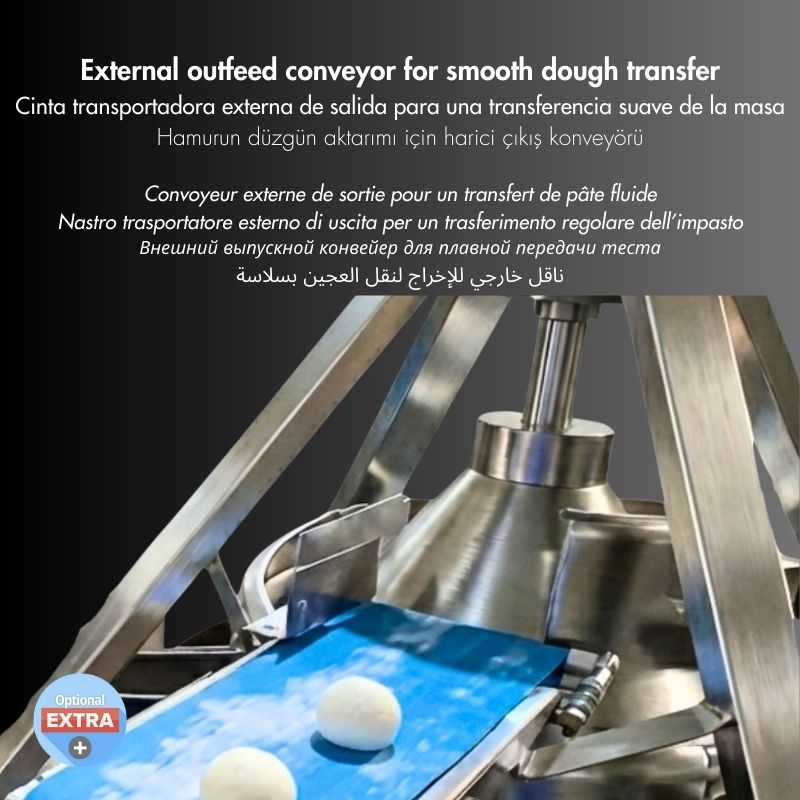

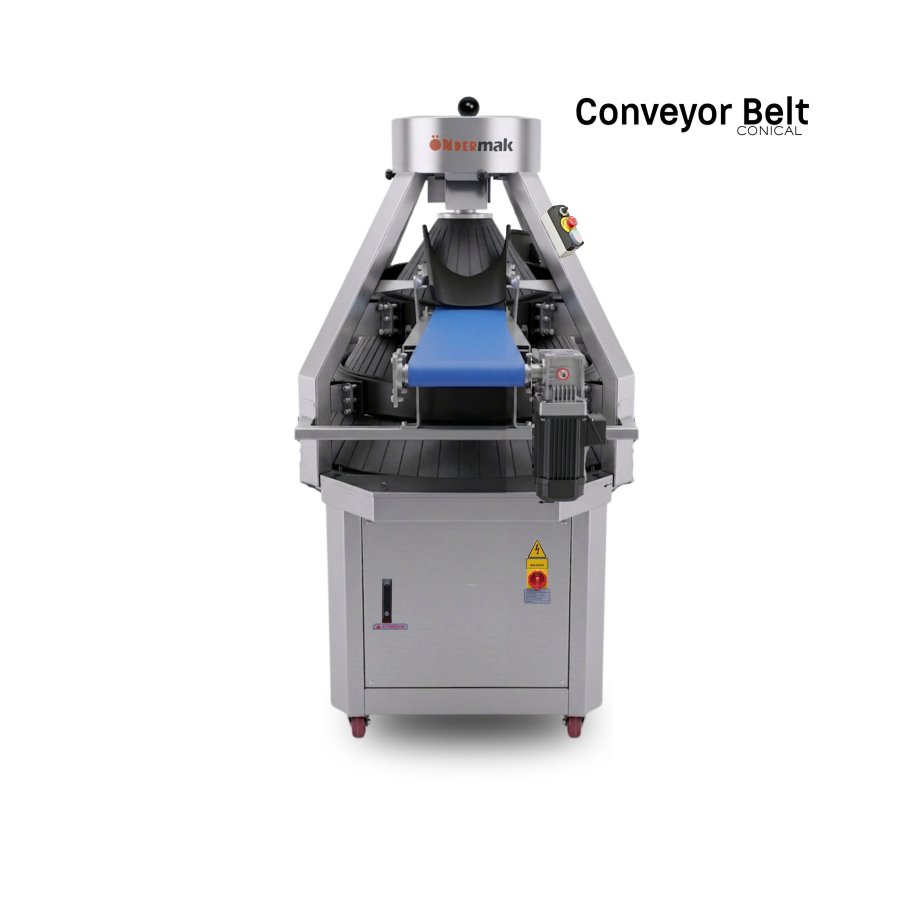

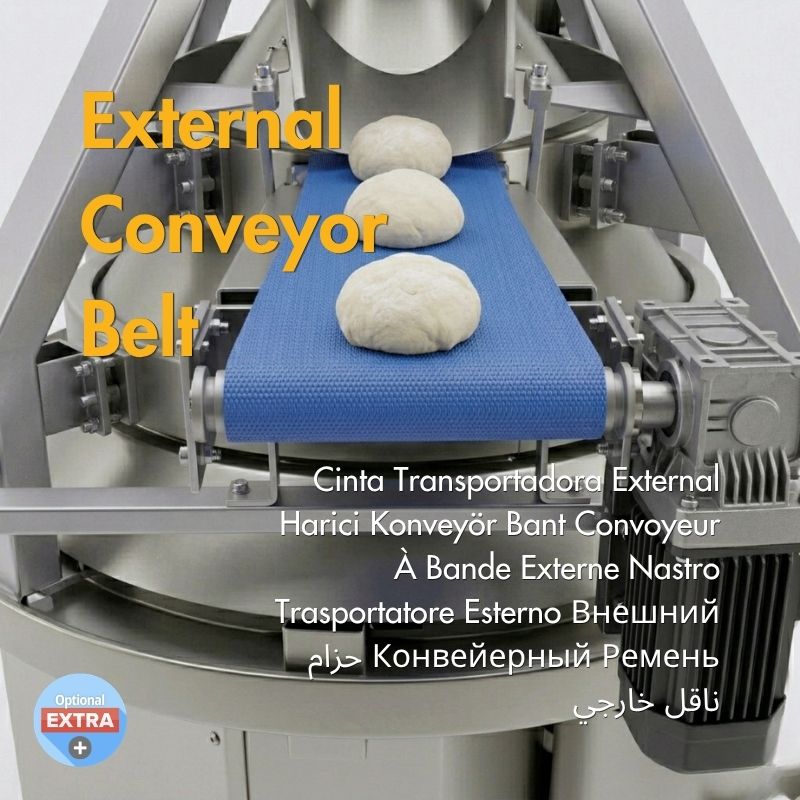

External motorized conveyor belt for integration into continuous production line

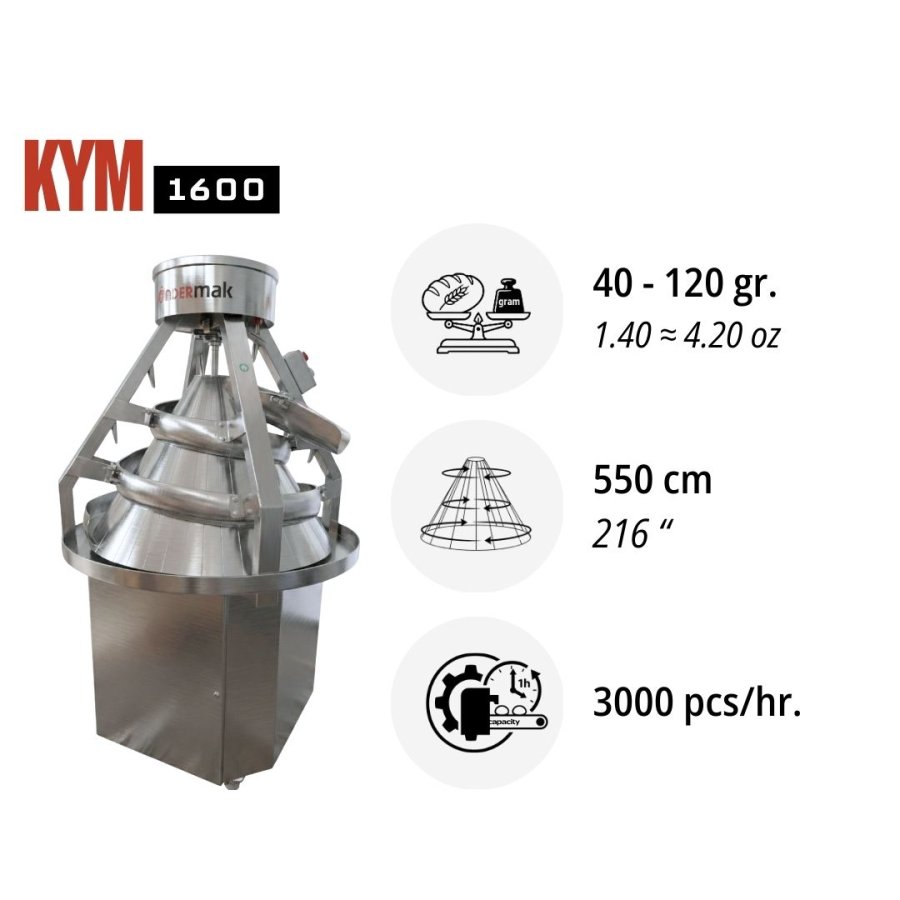

| Model - Modelo | Unit | KYM1600 |
|
Capacity / Capacidad / Kapasite / Capacité / Capacità / Производительность / السعة |
Ad/pcs | 2000 |
|
Dough Range / Rango de Peso / Hamur Gramaj Aralığı / Plage de Poids / Range di peso / Диапазон веса теста / نطاق وزن العجين |
gr. | 40-120 |
|
Tour No. / Track Length Nº de Vueltas / Longitud de Pista Tur Sayısı / Kanal Uzunluğu Nb de Tours / Longueur de Piste N. di Giri / Lunghezza Pista Кол-во оборотов / Длина пути عدد اللفات / طول المسار |
Nr./cm | 3 - 549 |

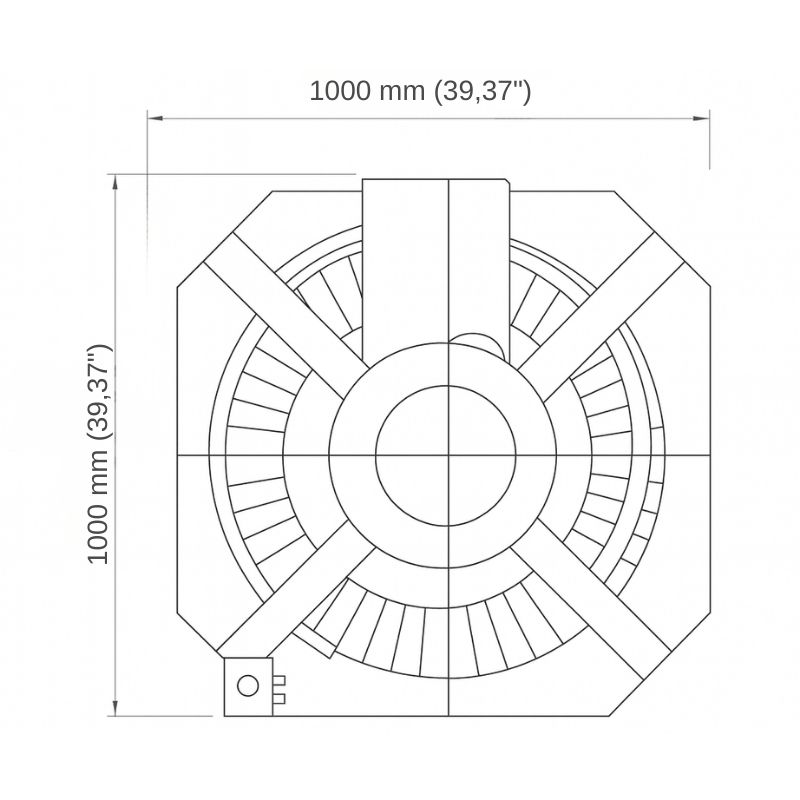

| Width / Ancho / Genişlik / Largeur / Larghezza / Ширина / العرض | (W)mm | 1000 |
|
Length / Largo / Uzunluk (L) / Longueur / Lunghezza / Длина / الطول |
(L)mm | 1000 |
|
Height / Altura / Yükseklik (H) / Hauteur / Altezza / Высота / الارتفاع |
(H)mm | 1585 |
|
Dough Input (h1) / Entrada Masa / Hamur Girişi / Entrée Pâte / Ingresso pasta / Вход теста / مدخل العجين |
(h1)mm | 920 |
|
Dough Output / Salida de Masa / Hamur Çıkışı / Sortie de Pâte / Выход Теста / Uscita Pasta / مخرج العجين (h2) |
(h2)mm | 1050 |
|
Power / Potencia / Güç / Puissance / Potenza / Мощность / القدرة |
V/hz | 380 V50Hz N+PE 3 Phase |
| Voltage / Voltaje / Voltaj / Tension / Tensione / Напряжение / الجهد الكهربائي | KW | 1.1 |
|
Weight / Peso Neto / Ağırlık / Poids / Peso / Вес / الوزن |
KG | 205 |
|
Material / Materyal / Matériau / Materiale / Материал / المادة |
- |
stainless + forged cast aluminium/INOX + aluminio fundido forjado Paslanmaz + alüminyum döküm /Inox + aluminium moulé forgé/ inox + alluminio fuso forgiatoНержавеющая сталь + кованый литой алюминий/الفولاذ المقاوم للصدأ + الألمنيوم المصبوب المطروق |
