TECHNICAL DRAWING

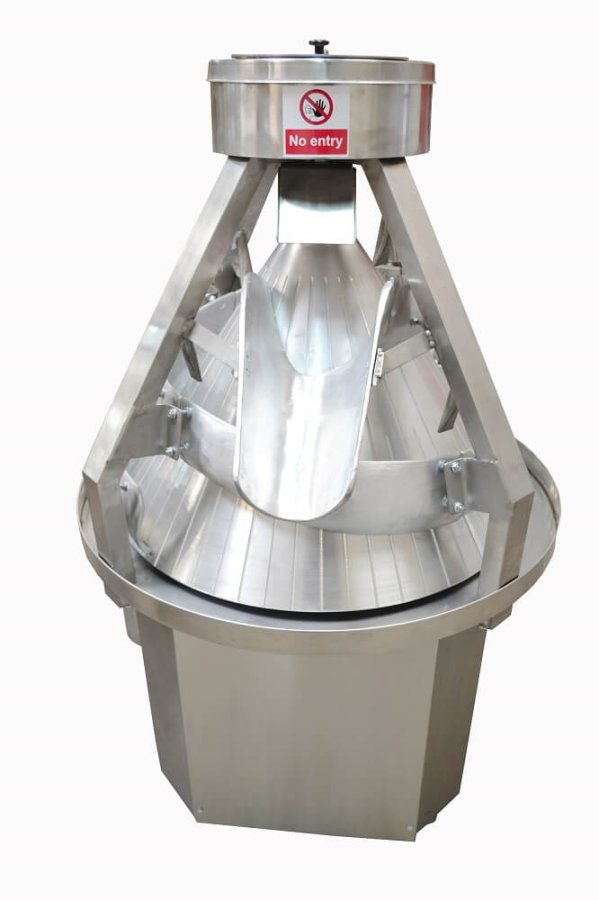

» Ondermak design, cone and channels for the perfect rounding
» Fixed channels
» 2 touring around the wings
» Under cone flour cleaner brush
» Flour recycle bin
» Adjustable flour duster unit
» Noiseless working
» Cold air blower
» Completely stainless steel body and stand
» Aluminum forged cast cone and channels
» Teflon coated cone & channels (optional)
» Hot air blower (optional)
» Oil sprayer
» Speed control unit (optional)
» Easy to clean and maintenance
» CE certificated & 2 years of warranty



Technical Specifications

Model - Modelo

KYM1600

KYM1800

KYM2000

KYM4800

KYM6000

Kapasite / Capacity / Capacidad

2000

2000

2000

4800-6000

2000

 Yuvarlama Aralığı / Rounding Range / Masa Peso

 40-120 gr.

 100-600 gr.

 200-800 gr.

 50-1200 gr.

 1000-2000 gr.

 Tur Sayısı / Rounding  Nr. / Circulo Nr. / cm

    3 - 549

    3 - 549

    2 - 380

    2 - 370

    3 - 460

 Genişlik (W) / Width / Ancho (mm)

  1000

 1000

 1000

 1000

 1000

 Uzunluk (L) / Length / Largo (mm)

  1000

 1000

 1000

 1585

 1000

 Yükseklik (H) / Height / Alto  (mm)

 1585

 1585

 1585

  920

  920

 H.Giriş Yüksekliği (H1) / D.lnput / M.Entrada (mm)

  920

  920

  920

 1050

 1050

 H.Çıkış Yüksekliği (H2) / D. Output / M.Salida  (mm)

  1050

 1050

 1050

  1.1

  1.1

 Elektrik Bağlantı / Elec.Connection / Elec. Conexi6n

380 V50Hz N+PE 3 Phase

 380 V50Hz N+PE 3 Phase

 380 V50Hz N+PE 3 Phase

380 V50Hz N+PE 3 Phase

380 V50Hz N+PE 3 Phase

Elektrik Gücü / Electric Power / Energfa  (Kw)

   1.1

   1.1

   1.1

   1.1

   1.1

Ağırlık / Weigth / Peso Neto (kg)

205

235

205

235

325

Materyal / Material

 paslanmaz gövde + döküm aluminyum / stainless + forged cast aluminium / acero inoxidable + aluminio fundicion de molde
