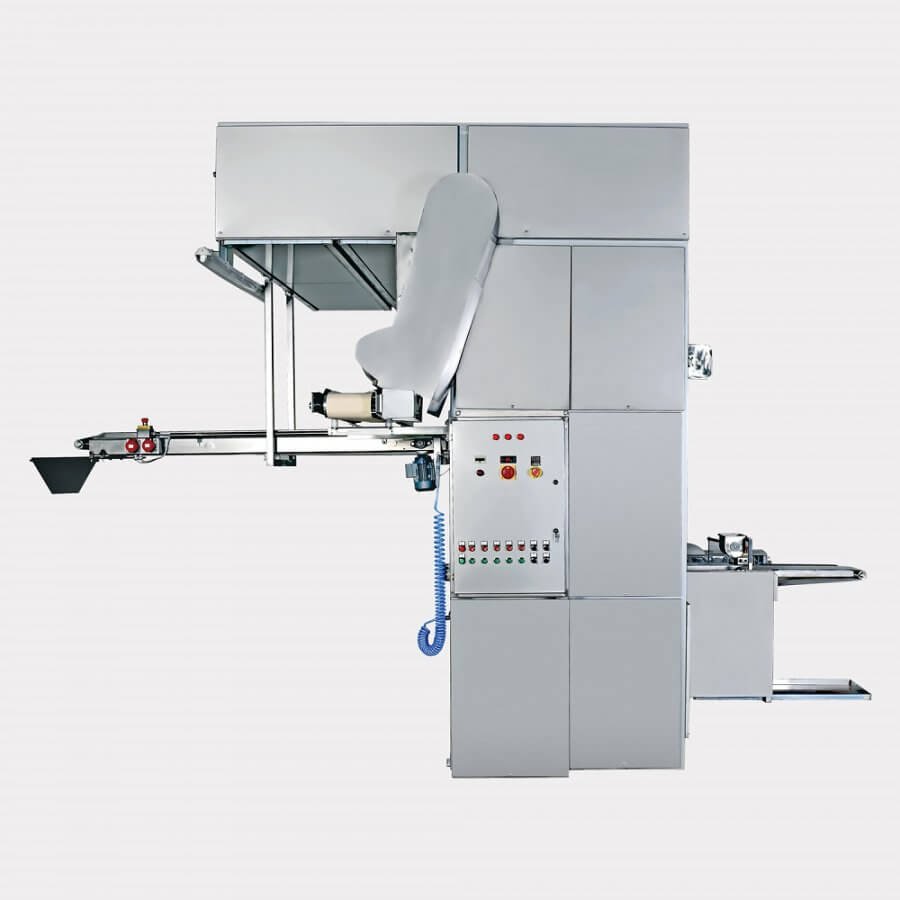

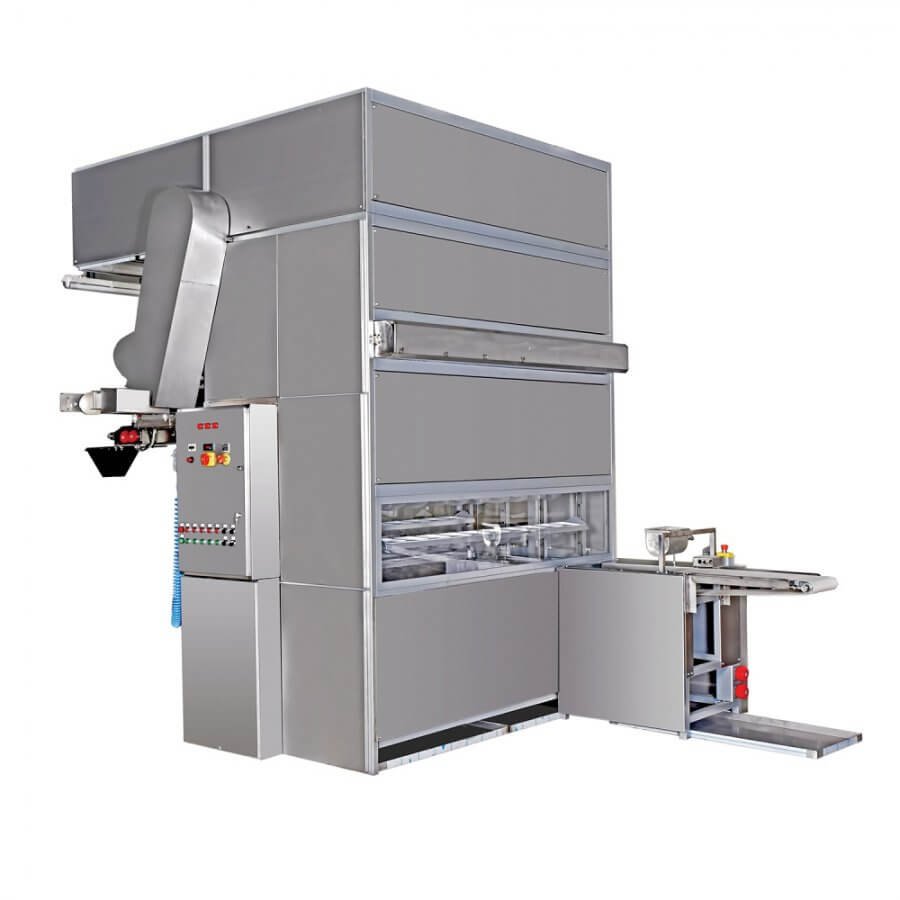

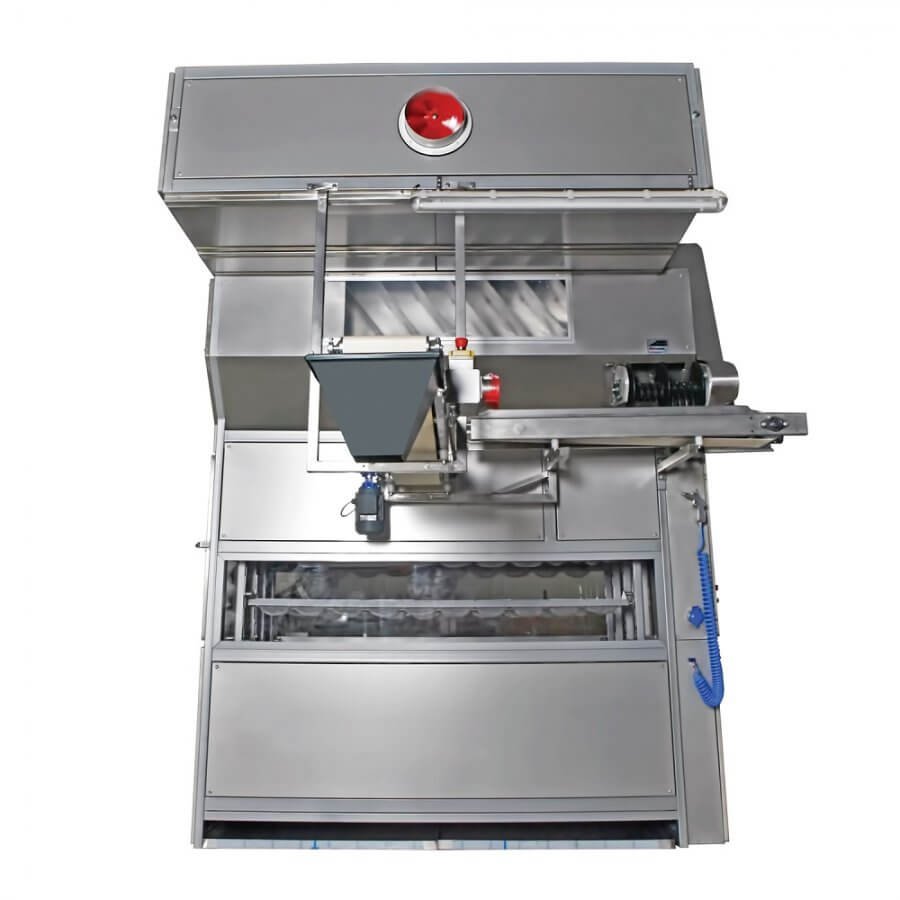

» Industrial type intermediate proofer
» 60/80/100 rows , 600 – 800 – 1000 pockets
» 10 – 20 minutes resting time, the time may be customized on request
» Capacity for 3600 – 4800 – 6000 pcs per hour
» Industrial dough feeding stand, on request left/rigth/back position
» Double dough input - output built on line setup
» Non stickiness, respecting to FDA norms , wide square nylon mesh pockets
» Easy to replace mesh pockets
» Equipped with converyor belts for output which integrate to the smart seperators
» PLC smart screen with sensors for full automation production
» Durable, non-stretching , noiseless chain setup designed by Ondermak, at least 10 year lifetime
» Transparent 3 sides work flow windows
» Dough or flour recycle trays at bottom
» Entirely panels, rows inside and structure made of stainless steel
» Demountable structure
» High performance air ventilation
» Ultraviolet interior, LED exterior illumination
» CE certificated & 2 years of warranty

Technical Specifications

Model



ADM 3600

ADM 4800

ADM 6000

Kapasite / Capacity / Capacidad

Adet/sa. - Pcs/hr.

3600

4800

6000

Askı Sayısı / Row Number / Numero De Cargadoras

Nr.

60

80

100

Tas Sayısı / Pocket Number / Numero De Bolsas

Nr.

600

800

1000

Dinlenme Zamanı/ Resting Time / Tiempo De Reposo

dk/minutes/minuto

10/15/20/25 +/

10/15/20/25 +/

10/15/20/25 +/

 Genislik (W) / Width / Ancho

mm

2100

2100

2250

Uzunluk (L) / Length / Largo

mm

2300

2550

3550

Yükseklik (H) / Height / Altura

mm

2800

2800

3550

Hamur Giris Yüksekligi (H1) / Dough Input / Masa Entrada

mm

915

915

915

 Elektrik Gücü / Electric Power / Energía

KW

1.5

1.5

1.5

Elektrik Baglantı / Electric Connection / Conexión Electrica

Volt-Vac/Hz

380 V50Hz N+PE 3 Phase

380 V50Hz N+PE 3 Phase

380 V50Hz N+PE 3 Phase

Agırlık / Weigth / Peso Neto

Kg

2000 +/-

2500 +/-

3000 +/-

Hamur Tasıma / Dough Weigth / Masa Peso

gr

50-1200

50-1200

50-1200

Tas Ölçüsü / Pocket Size / Bolsa Dimension

mm

170x170

170x170

170x170

Un tepsisi / Flour Recyle Tray / Bandeja De Harina

Standard

Fan + Uv ısık / Air Flow + Uv ligths / Ventildor + Uv lamparas

Standard

Hız Rölesi + PLC Smart Pan./ Speed Control +PLC / Variador+ PLC

Standard

Materyal / Material

Paslanmaz – Stainless Steel – Acero Inoxidable

Tas Tipi / Pocket Type / Tipo De Bolsa

Kare Tül Tas/ Nylon Mesh Pocket/Fieltro Sintetico
