TECHNICAL DRAWING
PRODUCT BROCHURE

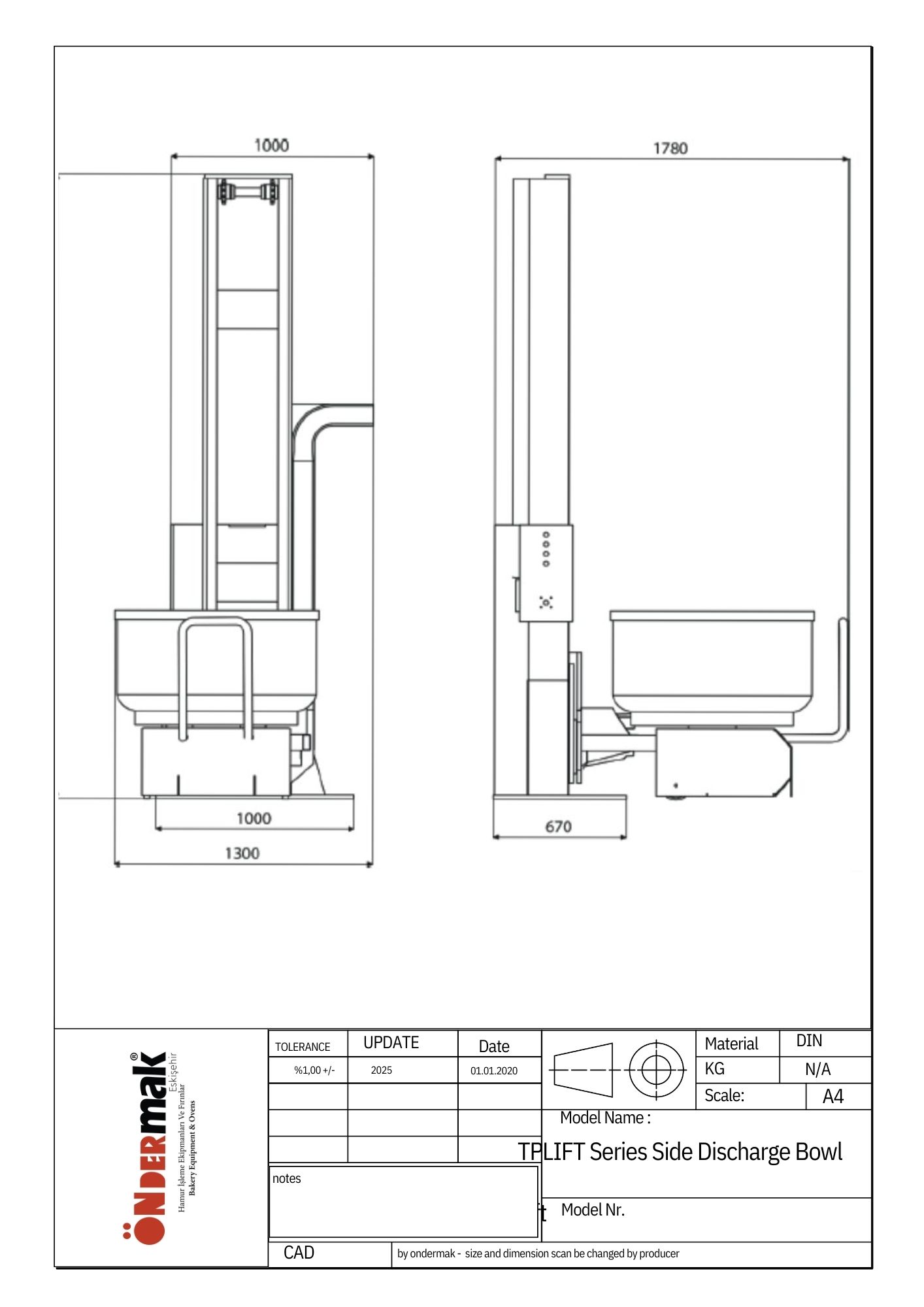

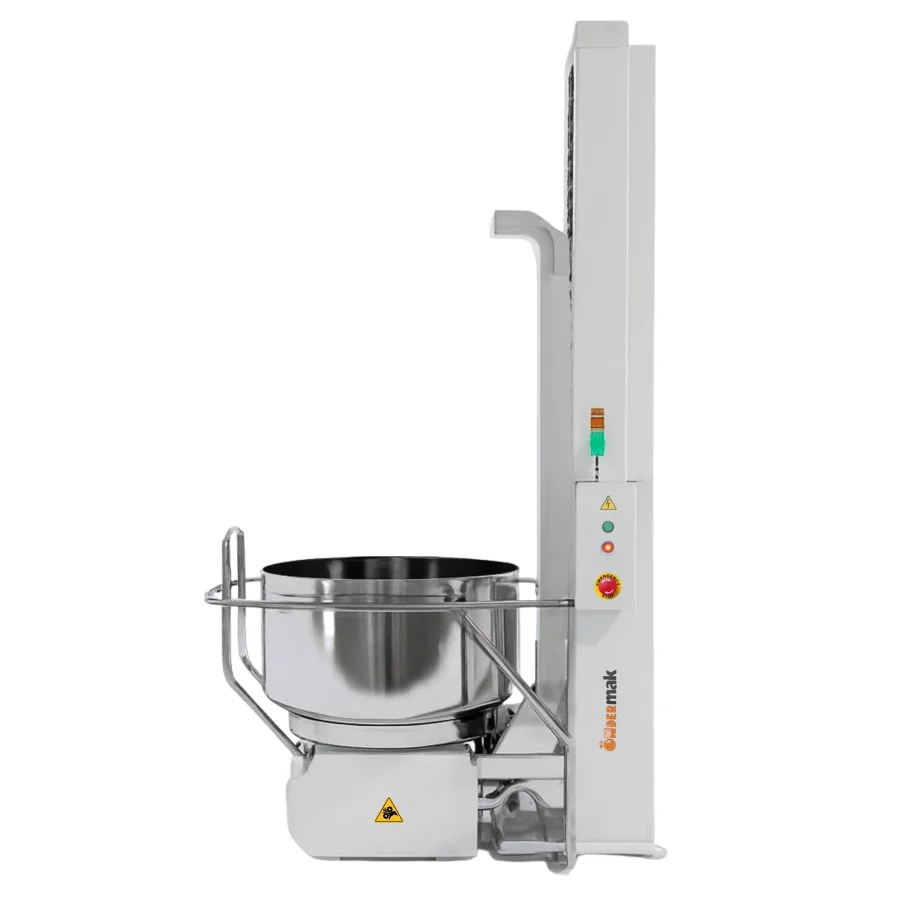

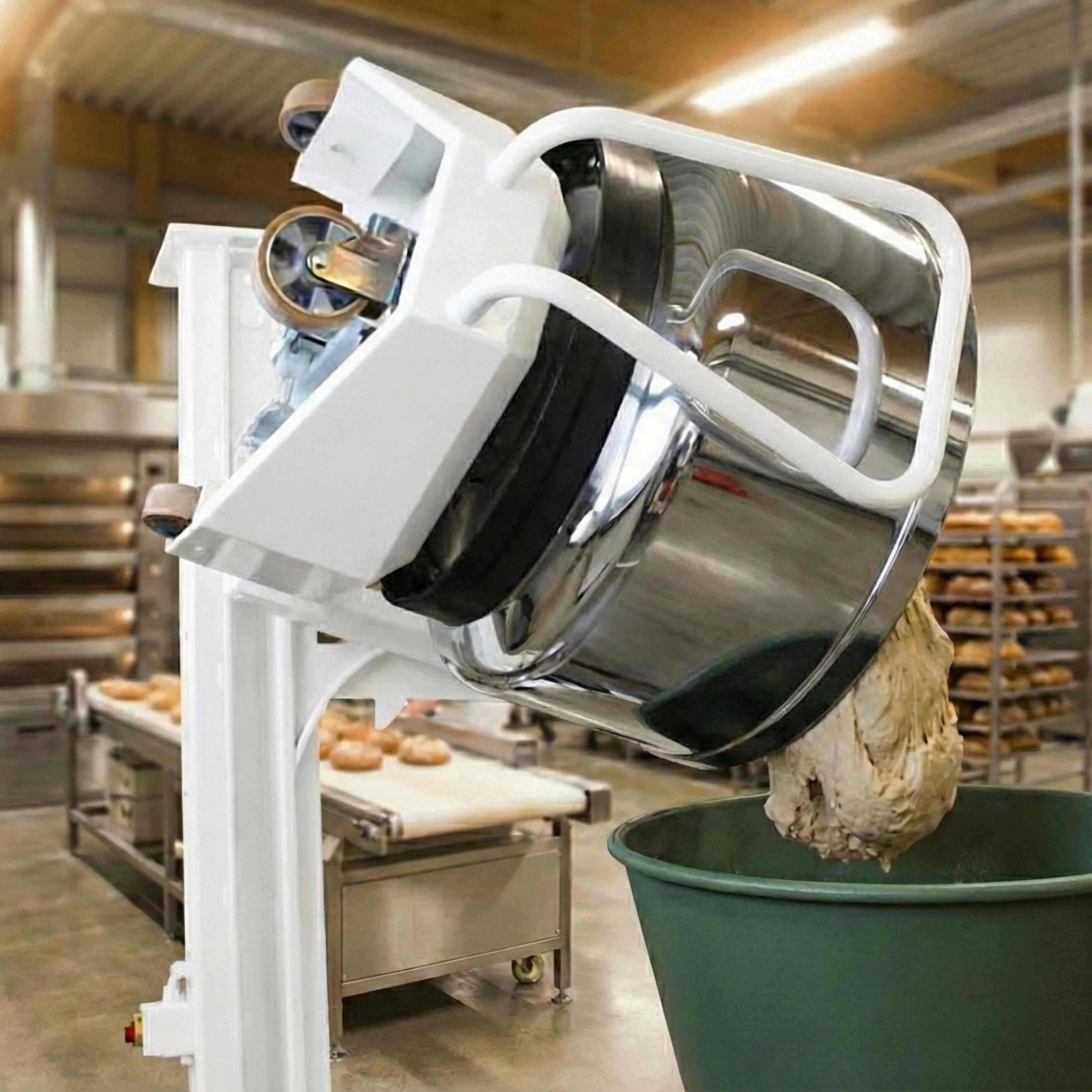

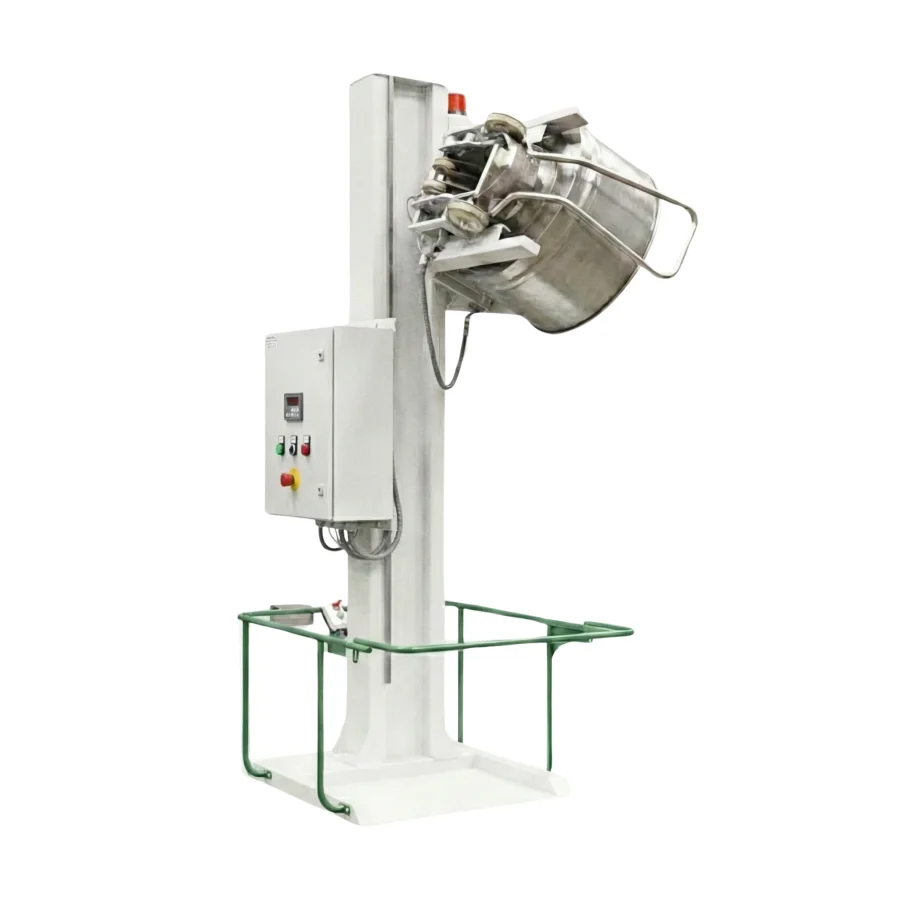

  • Motor-driven hydraulic lifting system
  • Left- or right-side single-direction tipping
  • Discharge height options: 1400 / 1700 / 1900 mm (table or hopper)
  • Compatible with 160 kg and 250 kg spiral mixers
  • Maximum lifting capacity: up to 600 kg
  • Integrated bowl scraper for efficient dough discharge
  • Heavy-duty painted steel structure
  • Elektro mechanical control panel (lift up/down, tilt, bowl rotation)
  • CE certificate
  • 1 year of warranty

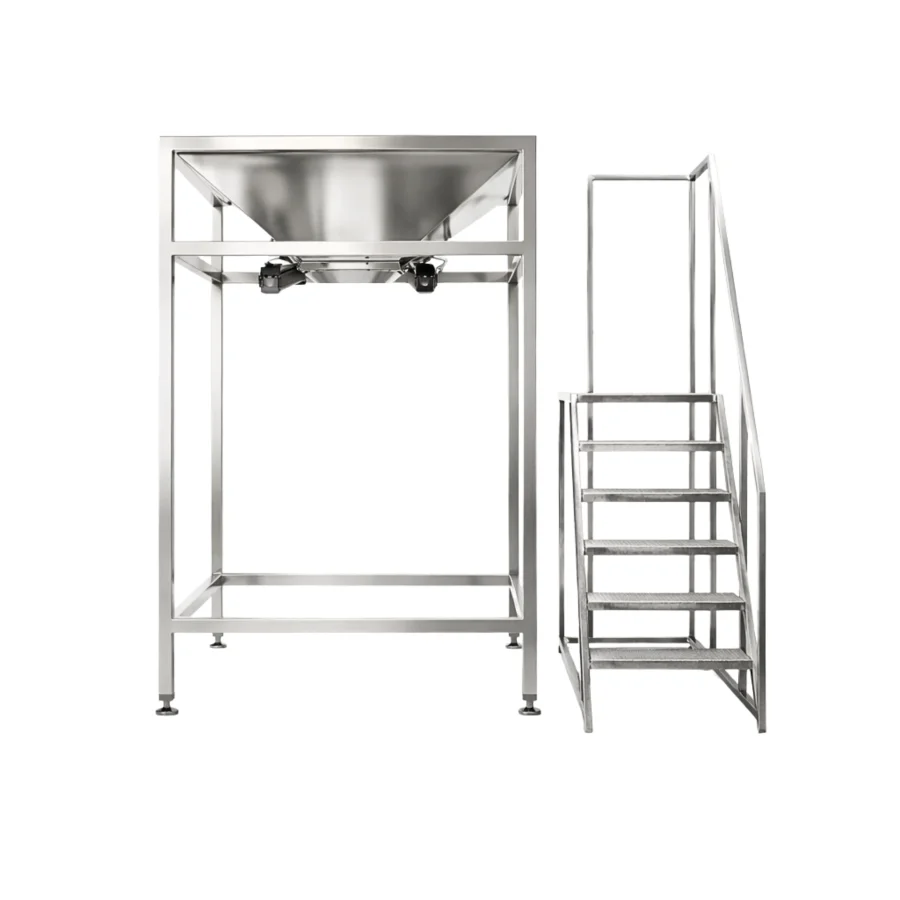

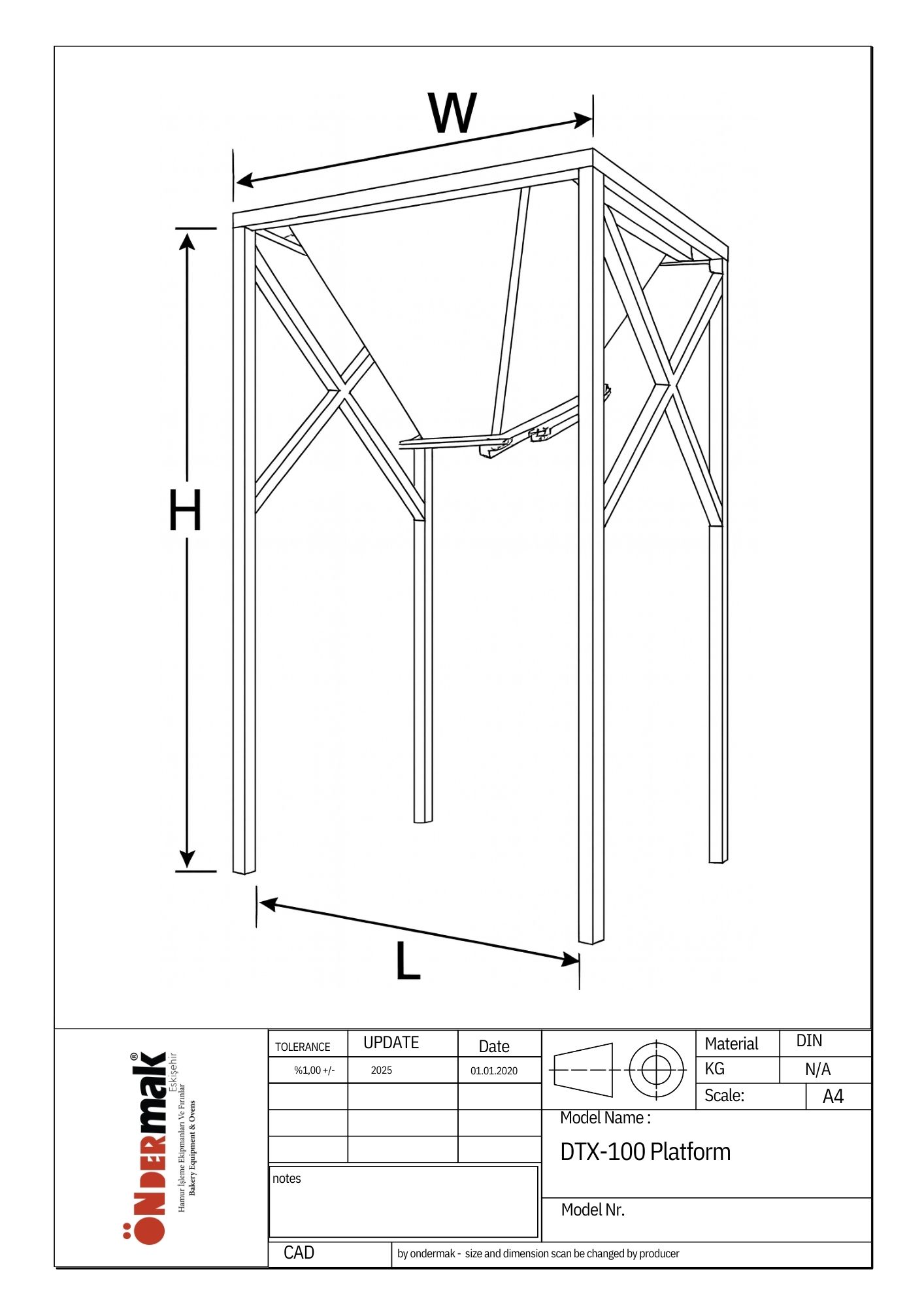

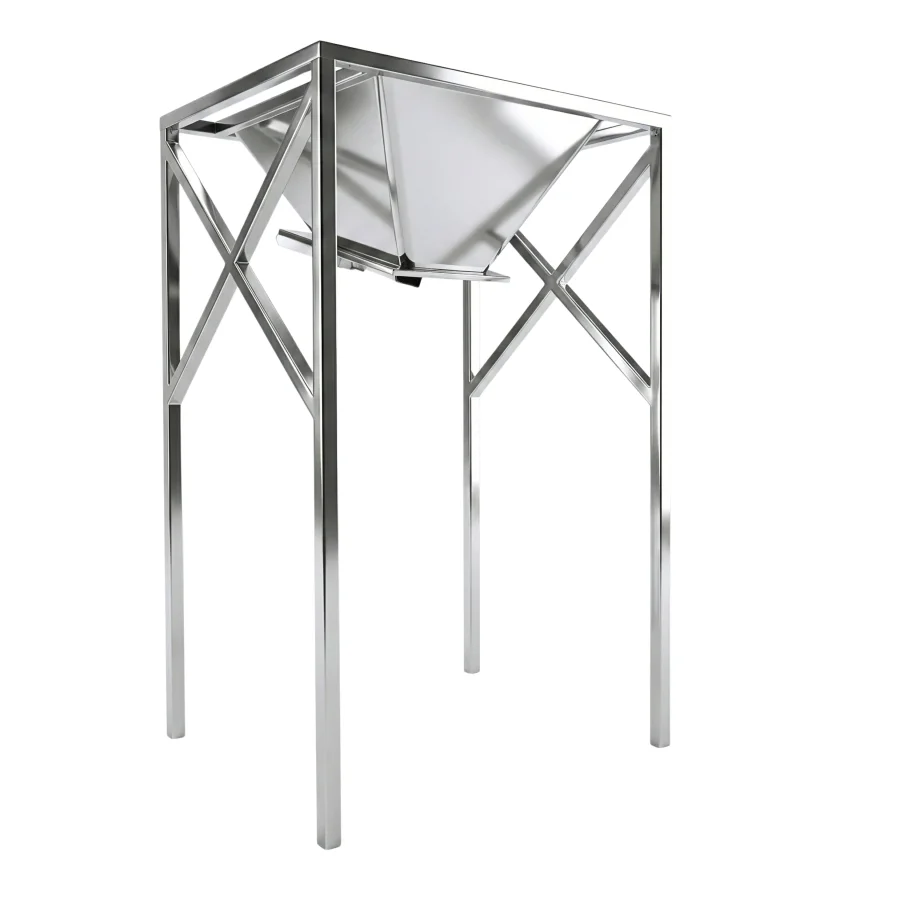

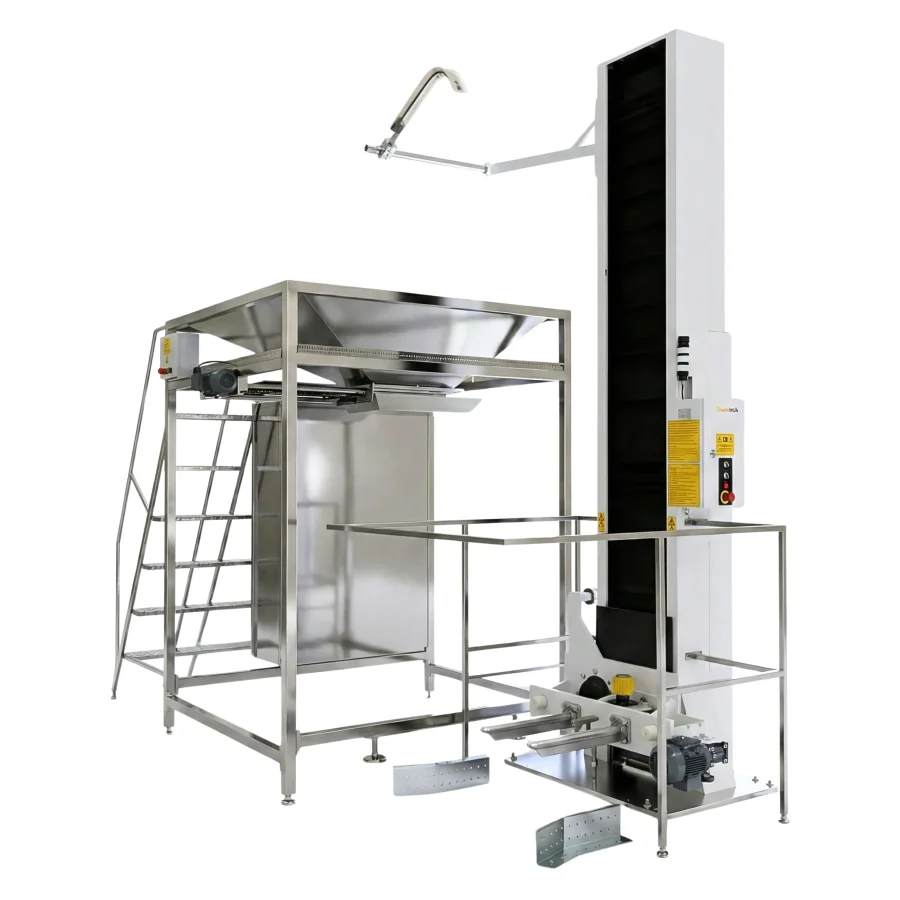

DTX-100 Platform

  • Dough transfer platform designed to transfer dough from the mixer to the divider hopper
  • Equipped with a pneumatic dough cutting system, allowing controlled dough portioning for the divider hopper
  • Fully stainless steel construction
  • Electromechanical control panel
MODELS & TECHNICAL SPECS.
Model

Dough/Masa

Hamur/Pâte

Impasto/Тесто

عجين

(kg)

 Dough Discharging Height/Altura Descarga/ Boşaltma/ Hauteur Décharge/ Altezza Scarico/ Высота выгрузки/ ارتفاع التفريغ (mm) KW Machine Dimension/Dimensión/ Ebat/ Dimension Dimensione/ Размер/ بُعد (mm) Weight / Peso Neto / Ağırlık / Poids / Peso / Вес / الوزن (kg) Power / Potencia / Güç / Puissance / Potenza / Мощность / القدرة
TP - TIPLIFT Bowl Lifter 160-250 mixer 1400/1600/1900 2.5 1300X1780X3500 950 380 V50/60Hz N+PE 3 Phase
DTX-100 Platform 450 2700 1.5 2500x1950x3000 375
