HIGHLIGTHS
CATALOGUE
TECHNICAL DRAWING
  • Electric or Gas models
  • 5-tray capacity, tray spacing: 80 mm
  • Maximum operating temperature: 300 °C
  • Fully stainless steel construction (hood, inner baking chamber, and exterior panels)
  • INOX hood with integrated air fan
  • 1 × high-performance air fan, Italian brand,  400mm Q/1200 rpm
  • Atmospheric burner (gas models only)
  • Tempered glass door, easy to clean
  • Ergonomic door handle
  • Halogen lighting inside the baking chamber
  • Silicone door gaskets to prevent heat and steam leakage
  • Digital control panel(Steam/Temperature/Baking time/Alarm/Fault/Burner reset/Prover)
  • Automatic start function
  • Oven cooling function
  • Automatic / Manual steam modes
  • Door-open alarm & Over-voltage protection relay
  • Oven configurable with:Stand/Tray base/Prover/Combi
  • Wheels for easy mobility
  • Designed for easy maintenance and cleaning
  • CE and EAC comformity
  • 2 years warranty



Fermentation Cabinet

  • Fully stainless steel (INOX) construction
  • Operating temperature up to 100 °C
  • Tray capacity: 14 trays
  • Controlled directly from the oven control panel



Optionas

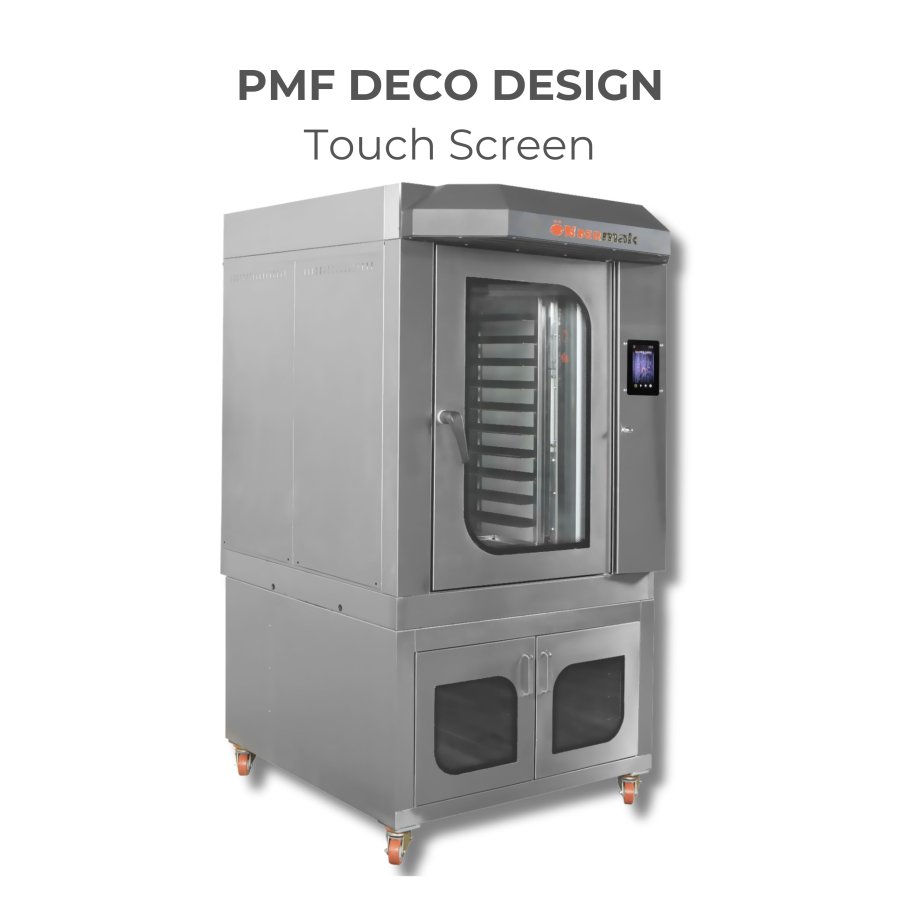

  • Programmable touchscreen control panel
  • Stand, tray holder cabinet, or fermentation cabinet
  • Decorative stainless steel exterior panels
  •  208–240 V / 60 Hz / 3-phase
MODELS & TECHNICAL SPECS.
Mode
Модель
طراز		 Energy
Energía
Enerji
Энергия
الطاقة		 Capacity
Capacidad
Kapasite
Capacité
Capacità
Ёмкость
السعة		 Tray Spacing
Espaciado Bandejas
Tepsi Aralığı
Espacement Plateaux
Spaziatura Vassoi
Расстояние Между Лотками
تباعد الصواني		 Size/Tamaño/Ebat
Taille/Dimensione
Размер/الحجم
mm		 Thermal Power
Potencia Térmica
Termal Güç
Puissance Thermique
Potenza Termica
Тепловая Мощность
القدرة الحرارية		 Total
Toplam
Итого
الإجمالي		 Tension
Tensión
Gerilim
Tension
Tensione
Напряжение
الجهد		 Weight
Peso
Ağırlık
Poids
Вес
الوزن		 Gas
Unit cm/pcs mm (W) (L) (H) E KW KW Vac/hz Kg Mbar
5TE - SW Electric 40×60
5 pcs		 80 850 1350 1800 1785 8 9 380V/50-60/3-NPE 200
5TG - SW  Gas 80 850 1350 1800 1785 - 1 220V/50-60/1 ph 210 20
5TE - TH Electric 80 850 1350 1800 1785 8 9 380V/50-60/3-NPE 200
5TG - TH  Gas 80 850 1350 1800 1785 - 1 220V/50-60/1 ph 210 20
5TE - CC Electric 80 850 1350 1800 1785 8 9 380V/50-60/3-NPE 200
5TG - CC  Gas 80 850 1350 1800 1785 - 1 220V/50-60/1 ph 210 20
5TE- FC Electric 80 850 1350 1800 1785 8 11 380V/50-60/3-NPE 200
5TEG - FC  Gas 80 850 1350 1800 1785 - 3 220V/50-60/1 ph 210 20
5TE - Combi E-Electric/G - Gas 80 850 1350 1850 1785 9/5,0* 16 380V/50-60/3-NPE 210 0/20
Stand/Soporte
Stand/Support
Стойка/حامل 		 - 7x2 (14) 80 850 1250 680 - - -   50 -
Prover
Fermentación
Fermantasyon
Ферментация
التخمير 		 Electric 7x2 (14) 80 850 1250 680 - 2 2 2 70 -
