TECHNICAL DRAWING

» Designed forsupermarkets, bakeries in use of “Self Service”

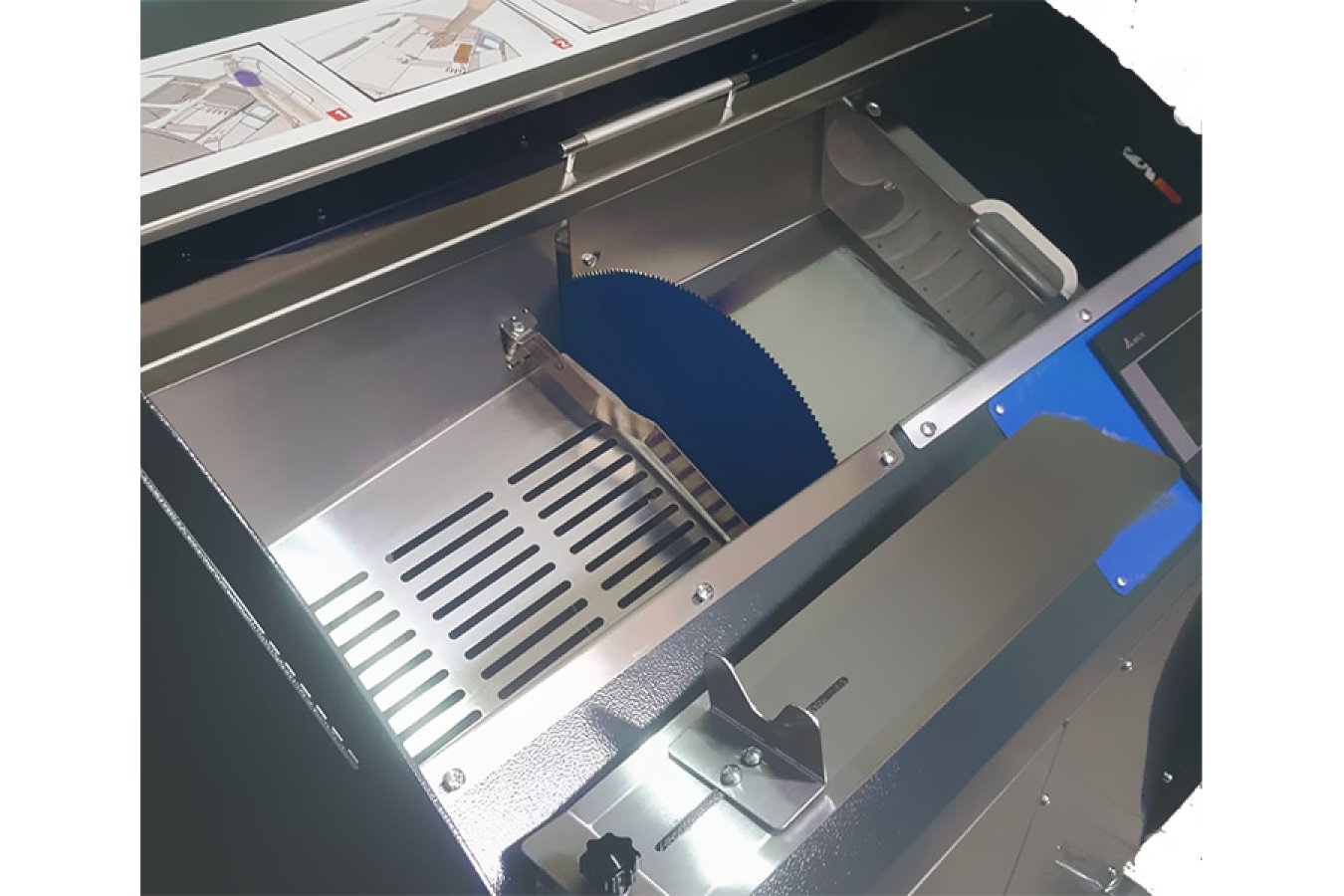

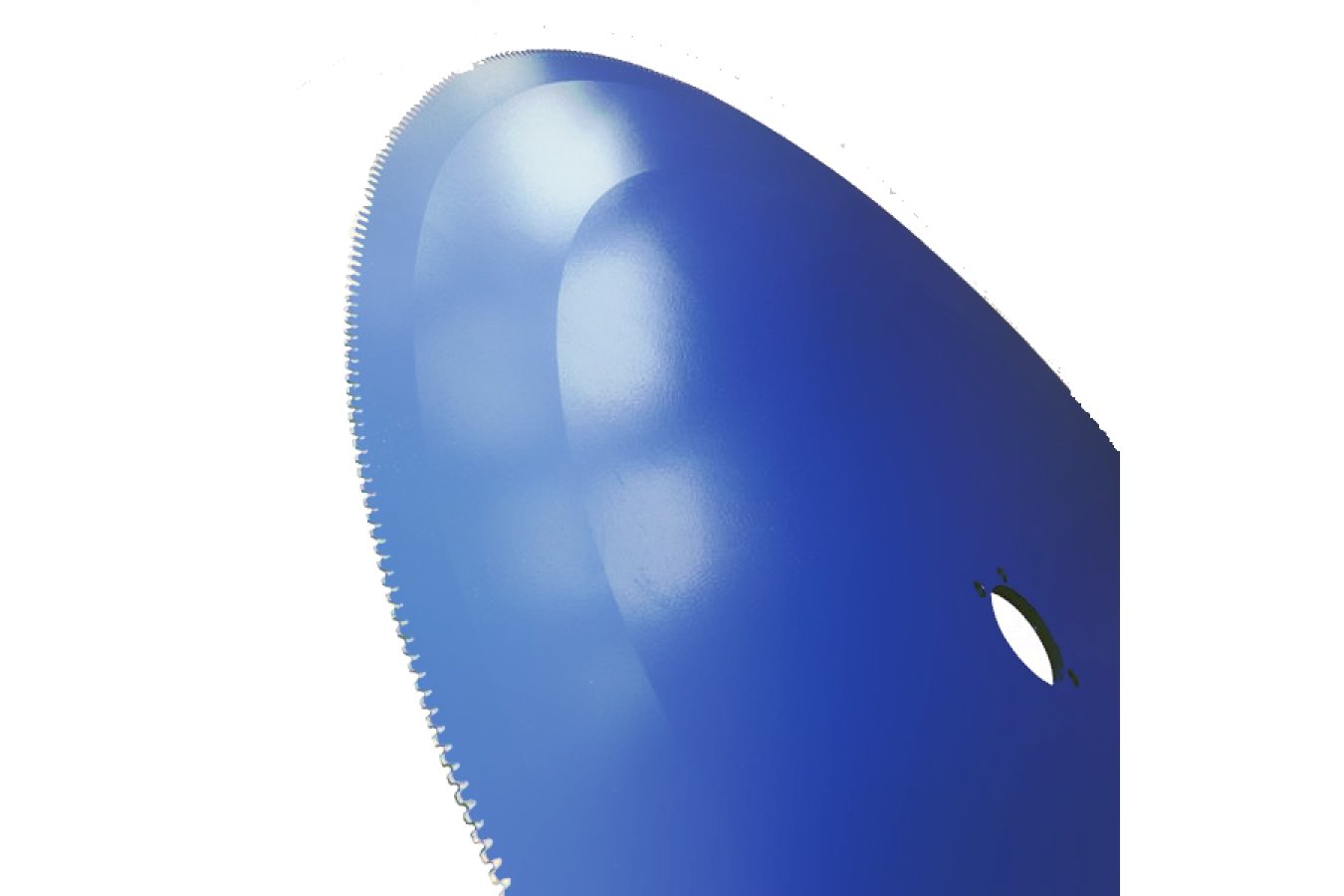

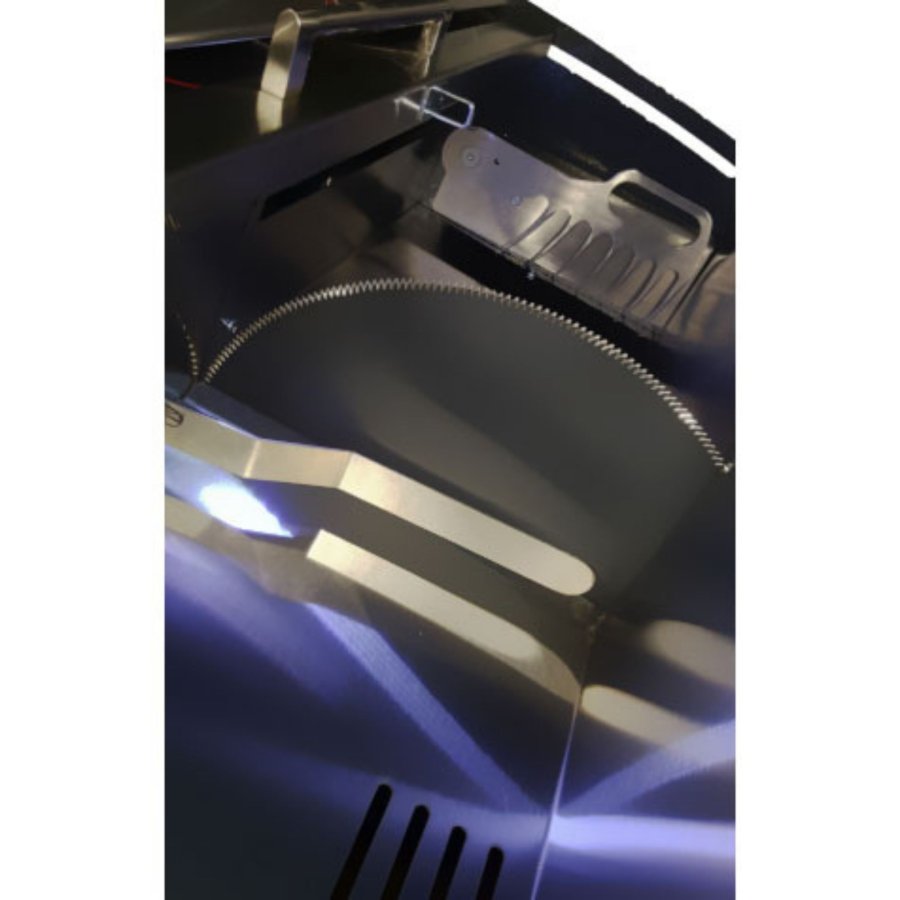

» Teflon coated circular disk slicing, variable in slice thickness
» From 3 mm up to 25 mm, free to adjust thickness
» Avaliable for slicing alternative pastry products , up to 4 kg capacity

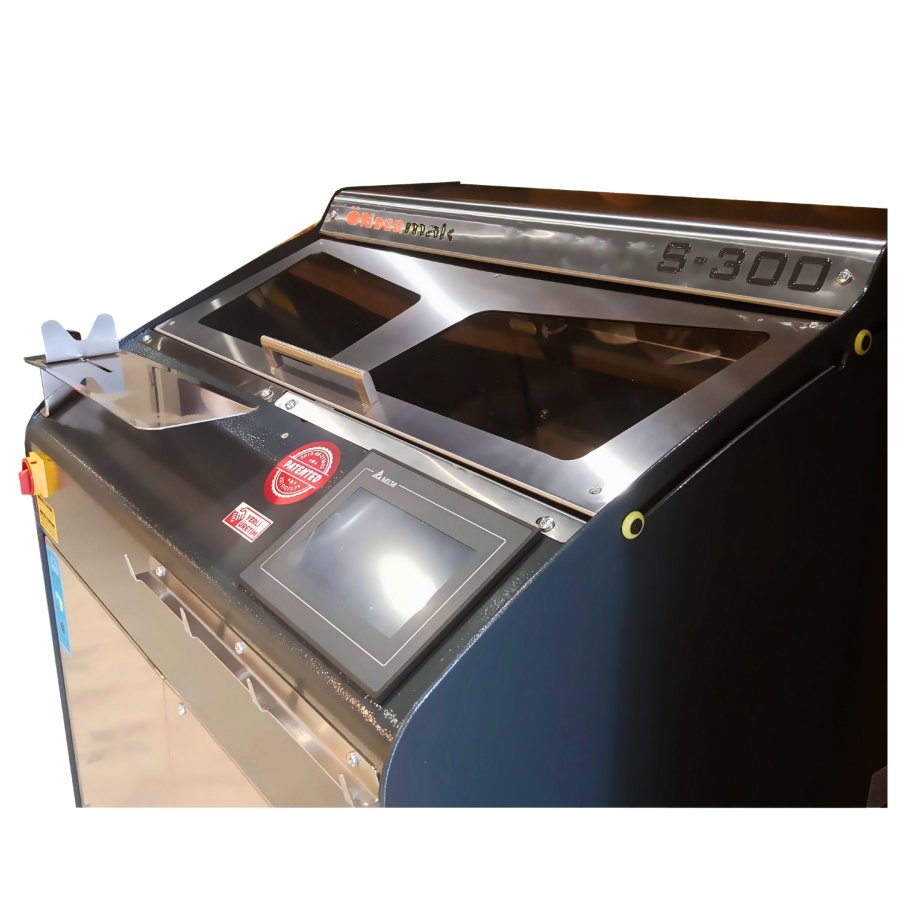

» PLC touch screen , easy to use
» Adjusting the number of slices on panel
» Avaliable half portion slicing bread in operation
» Crumb box & cleaning sweeper
» Smart protective sensors for extreme safety
» Solid & protective front body
» Basic packaging unit on top
» Electrostatic painted body, stainlees steel inner side
» Wheels with brake
» “A” Class safety for all users
» Easy to clean and maintenance
» CE certificated & 2 years of warranty



Technical Specifications

MODEL

TIP

TYPE

TIPO

AD/SA

PCS/HR

PZS/HR

EBAT

DIMENSION

(W-L-H)mm

MOTOR

KW/V.

MAX.EKMEK BOY ENxBOY

MAX.BREAD LENGTHxWIDTH

MAX. LARGO DE PAN LARGOxANCHO

BIÇAK ARALIĞI

BLADE THICKNESS

CUCHILLOS

MAX. EKMEK YÜKSEKLİĞİ

MAX. BREAD HEIGHT

MAX. ALTO PAN

AĞIRLIK

WEIGTH

PESO KG

SLS 3000

Disk - Circular

200

850x720x1140

380 V50Hz N+PE 3 Phase

330 x 460

3 - 25 mm

50-180 mm

215

SLS 4000

Disk - Circular

200

 1000x800x1289

380 V50Hz N+PE 3 Phase

330 x 460 mm

3 - 25 mm

50-180 mm

235
